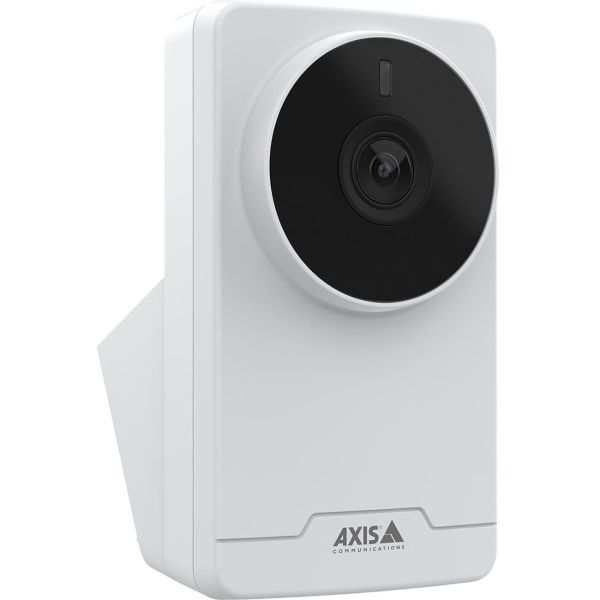

AXIS M1055-L Box Camera

Marketing Information

Ideal for small stores and residential care, this compact, easy-to-install camera offers great image quality - around the clock. It supports advanced analytics based on deep learning on the edge.

Ensure privacy and security

This cost-effective camera is designed with privacy and security in mind. It features a tally LED to indicate video streaming or recording. And, with AXIS Live Privacy Shield, it's easy to remotely monitor activities while protecting privacy. AXIS M1055-L is packed with built-in cybersecurity features to help prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware ...and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed.

Great image quality

AXIS M1055-L offers HDTV 1080p resolution with great image quality. With Wide Dynamic Range (WDR) you can see details even when there's dark and light areas in the scene. And, thanks to an IR-corrected lens, you'll enjoy professional-quality video both day and night. Additionally, this easy-to-install box camera can be mounted in corners for complete coverage with a 103° field of view.

Extended possibilities

This compact camera includes a deep learning processing unit (DLPU) enabling advanced features and powerful analytics based on deep learning on the edge. Thanks to AXIS Object Analytics including time in area feature (beta), it lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering or monitor dwell time. Furthermore, it offers support for PoE and includes an I/O port for accessories, such as alarm buttons.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02349001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: M10
Product Model: M1055-L
Product Name: M1055-L Box Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 17.98 m
Night Vision Type: Infrared
Display & Graphics
Image Sensor Type: RGB CMOS
Colour Supported: Colour
Field of View: Horizontal field of view 103° Vertical field of view 55°
Effective Camera Resolution: 2 Megapixel
Video
Video Formats:

• Zipstream
• H.264H
• H.264M
• Motion JPEG
• H.264M (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC)
• H.264
• H.265

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 3.16 mm
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/2.0
Exposure
Shortest Shutter Speed: 1/19000 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Power Source Type: PoE
Physical Characteristics
Form Factor: Box
Color Family: White
Product Color: White
Weight (Approximate): 137 g
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 35°C
Maximum Operating Humidity: 85%
Miscellaneous
Features:

• Day/Night
• Vehicle Detection
• Video Content Analytics
• Wide Dynamic Range
• Electronic Image Stabilization
• Removable IR Cut-off Filter
• White Balance
• Mirror
• Privacy Masking
• Human Detection

Package Contents:

• M1055-L Box Camera
• Installation Guide
• Windows Decoder 1-user License
• Wall Mount
• Terminal Block Connector

Warranty
Limited Warranty: 5 Year
