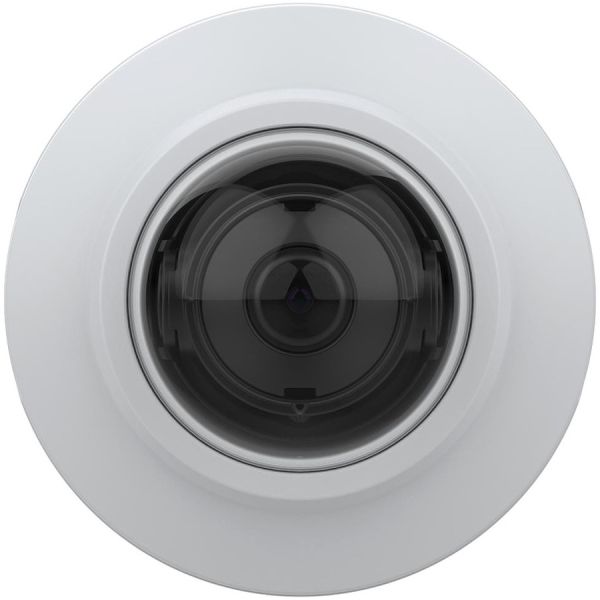

AXIS M3086-V Dome Camera

Marketing Information

Fixed 4 MP mini dome with deep learning

• Great image quality in 4 MP
• Compact, discreet design
• WDR and Lightfinder
• Support for analytics with deep learning
• Built-in cybersecurity features

This cost-efficient, compact mini dome delivers great image quality in challenging light conditions. And, with a deep learning processing unit, you can benefit from advanced analytics based on deep learning on the edge.

Great image quality

AXIS M3086-V offers great 4 MP image quality even in challenging light conditions. Thanks to Wide Dynamic Range (WDR), it ensures clarity even when there's both dark and light areas in the scene. And, with Lightfinder, you get sharp, color... images even in low light. Furthermore, it offers a wide-angle view of 130° and comes factory-focused so there's no manual focusing required.

Extended possibilities

AXIS M3086-V offers support for intelligent analytics based on deep learning on the edge. This means it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled and knows what to detect so you can focus on objects of interest - all tailored to your specific needs. Additionally, with support for ACAP, you can add value to your system with tailor-made applications. Furthermore, this compact dome offers the flexibility to add audio or I/O connectivity using accessories.

Compact and cost-efficient

This cost-efficient mini dome offers a wide range of mounting accessories for flexible and discreet installation. With bayonet-fitted casing, it simply twists on and off for fast, convenient installation. Compact in design, this easy-to-install, vandal-resistant camera is protected against redirection and defocusing as well as dust and dripping water. It offers Axis Zipstream with H.264/H.265 for reduced bandwidth and storage requirements. And thanks to edge storage you can record directly to an onboard memory card. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02374001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: M30
Product Model: M3086-V
Product Name: M3086-V Dome Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Display & Graphics
Image Sensor Type: RGB CMOS
Colour Supported: Colour
Field of View: Horizontal field of view: 130° Vertical field of view: 93°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:

• H.264
• H.265
• Zipstream
• H.264H
• H.264M
• H.264 (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC)

Maximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 2.40 mm
Lens Included: Yes
Maximum Aperture: f/2.1
Exposure
Shortest Shutter Speed: 1/38500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
HDMI: Yes
Network (RJ-45): Yes
Power Description
Power Source Type: PoE
Physical Characteristics
Mount Type:

• Ceiling Mount
• Wall Mount

Form Factor: Mini Dome
Durability:

• Water Resistant
• Dust Resistant
• Impact Resistant
• Vandal Resistant

Color Family: White
Product Color: White
Height: 56 mm
Diameter: 101 mm
Weight (Approximate): 150 g
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 45°C
Maximum Operating Humidity: 85%
Miscellaneous
Features:

• Wide Dynamic Range
• Day/Night
• Built-in Microphone
• Removable IR Cut-off Filter
• Multi-view Stream
• Cross Line Detection
• Password Protection
• HTTPS Encryption
• Human Detection
• Vehicle Detection

Indoor/Outdoor: Indoor
Impact Protection Rating: IK08
Ingress Protection Rating: IP42
TAA Compliant: Yes
