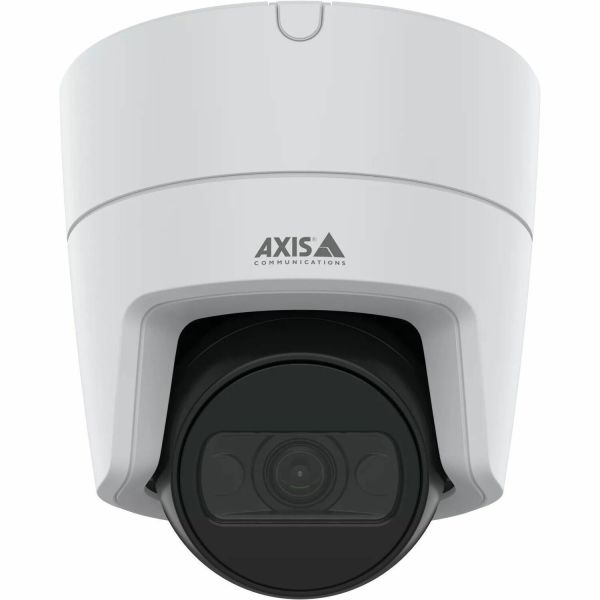

AXIS M3125-LVE Network Camera

Marketing Information

This turret-style, AI-powered dome camera delivers great 2 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors

Great image quality

AXIS M3125-LVE offers great 2 MP resolution with 110° field of view. Built-inOptimizedIRallows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there's no need for extra lighting-you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene. AndAxis Lightfindertechnology ensures increased light sensitivity and clear colors... in low light.

Powerful with strong security

Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cyber security platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Flexible and outdoor-ready

This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it's available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02916-001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: M31
Product Model: M3125-LVE
Product Name: M3125-LVE Network Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 20 m
Night Vision Type: Infrared
Camera Iris: Fixed
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support:

• English
• German
• French
• Spanish
• Italian
• Russian
• Simplified Chinese
• Japanese
• Korean
• Polish
• Portuguese
• Traditional Chinese
• Dutch
• Czech
• Swedish
• Finnish
• Turkish
• Thai
• Vietnamese

Wide Dynamic Range Detail: 110 dB
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.8"
Colour Supported: Colour
Field of View: Horizontal field of view: 110°, Vertical field of view: 60°
Effective Camera Resolution: 2 Megapixel
Video
Video Formats:

• H.264
• H.265
• Motion JPEG
• Zipstream
• H.264H (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC) Main Profile

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 60 fps
Audio
Audio Support: Yes
Lens
Lens Type: Fixed
Maximum Focal Length: 2.90 mm
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/2
Exposure
Shortest Shutter Speed: 1/25000 Second
Longest Shutter Speed: 2 Second
PTZ Modes: Digital PTZ
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• HTTP/2
• TLS
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTCP
• RTSP
• RTP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• ICMP
• DHCPv4/v6
• ARP
• SSH
• LLDP
• CDP
• MQTT
• MQTT v3.1.1
• Syslog
• ZeroConf
• IEEE 802.1AR
• IEEE 802.1X (EAP-TLS)
• ONVIF
• mDNS (Bonjour)

Remote Management: Yes
Storage
Storage Type: Memory Card
Internal Memory: 1 GB
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 10.50 W
Power Source Type: PoE
Physical Characteristics
Mount Type:

• Wall Mount
• Ceiling Mount

Form Factor: Dome
Durability: Weather Proof
Color Family: White
Product Color: White
Product Material:

• Polycarbonate
• Plastic

Weight (Approximate): 390 kg
Environmental Conditions
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: 50°C
Minimum Storage Temperature: -40°C
Maximum Storage Temperature: 65°C
Minimum Operating Humidity (Non-condensing): 10%
Maximum Operating Humidity (Non-condensing): 100%
Minimum Storage Humidity (Non-condensing): 5%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features:

• Day/Night
• Ingress Protection
• Motion Detection
• Vehicle Detection
• Human Detection
• HTTPS Encryption
• Password Protection
• Privacy Masking
• Wide Dynamic Range
• White Balance
• SD Card Local Storage

Indoor/Outdoor: Indoor/Outdoor
Package Contents:

• M5526-E PTZ Camera Indoor and outdoor 4 MP with 10x zoom and focus recall
• Installation Guide
• cable gaskets
• Connector Guard
• Owner Authentication Key

Impact Protection Rating: IK08
Ingress Protection Rating: IP66
TAA Compliant: Yes
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 5 Year
