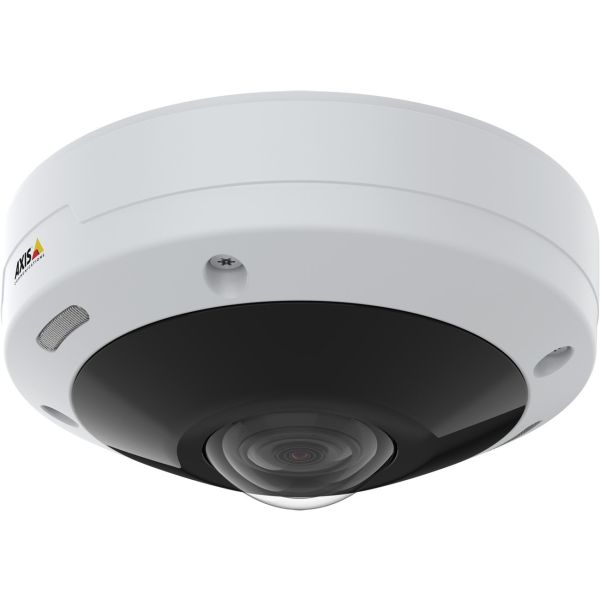

AXIS M4308-PLE Panoramic Camera

Marketing Information

This discreet, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview with audio capture. A deep learning processing unit (DLPU) allows you to benefit from analytics based on deep learning on the edge.

Extended possibilities

AXIS M4308-PLE offers great possibilities to add value to your camera and extend the functionality of your surveillance system. With a DLPU, this mini dome enables unique opportunities to take advantage of analytics based on deep learning on the edge. It comes with AXIS Object Analytics allowing you to detect and classify humans and vehicles for reliable detection with fewer false alarms. And, with forensic search functionality, it eliminates the need to scroll t...hrough endless hours of video surveillance and you can search through hours of video in seconds.

Sharp images and audio

Featuring a stereographic lens, AXIS M4308-PLE ensures a higher resolution around the outer portion of the view so objects located in the camera's peripheral view can be captured more clearly. Thanks to Sharpdome 360, this panoramic camera delivers greater sharpness at the edges of the image. With a 12 MP sensor, it offers excellent image quality and a complete 180° or 360° overview, around the clock regardless of the light conditions. It includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. Plus, Axis OptimizedIR for surveillance in pitch darkness. Featuring four built-in microphones with voice enhancer it offers high-quality audio capture and great noise suppression. And, with complete 360° overview you'll be sure to record everything with no blind spots.

Secure and easy

Based on a powerful Axis chipset, AXIS M4308-PLE features Axis Edge Vault to protect your Axis device ID and simplify authorization of Axis devices on your network. It's delivered factory-focused for ease of installation. And, with digital roll functionality you can remotely adjust the rotation of the camera overview- no need to do it manually on each camera. The discreet, flat design blends seamlessly into any environment. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02100001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: M4308-PLE
Product Name: M4308-PLE Panoramic Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 15 m
Night Vision Type: Infrared
Display & Graphics
Image Sensor Type: CMOS
Colour Supported: Colour
Field of View: Horizontal field of view: 183° Vertical field of view: 183°
Effective Camera Resolution: 12 Megapixel
Video
Video Formats:

• H.264 (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC)
• Motion JPEG
• H.264 BP
• H.264 (MP)
• H.265 (MP)
• Zipstream
• H.264
• H.265

Maximum Video Resolution: 2880 x 2880
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 1.30 mm
Lens Included: Yes
Maximum Aperture: f/2.4
Exposure
Shortest Shutter Speed: 1/22000 Second
Longest Shutter Speed: 1 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Power Source Type: PoE
Physical Characteristics
Mount Type:

• Recessed Mount
• Bracket Mount

Form Factor: Dome
Durability: Vandal Resistant
Color Family: White
Product Color: White
Height: 69 mm
Diameter: 149 mm
Weight (Approximate): 850 g
Environmental Conditions
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 50°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Wide Dynamic Range
• Day/Night
• White Balance
• Built-in Microphone
• Password Protection
• HTTPS Encryption
• SD Card Local Storage
• Built-in Infrared Illuminator
• Audio Detection
• Motion Detection

Indoor/Outdoor: Outdoor
Impact Protection Rating:

• IK10
• IK09

Ingress Protection Rating: IP66
