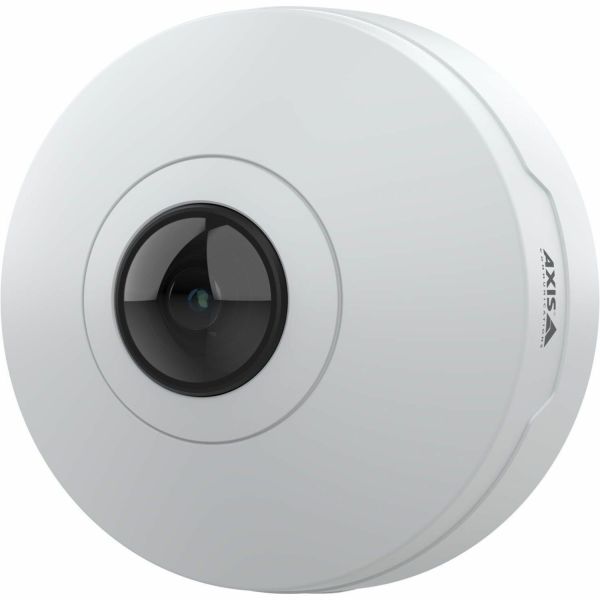

AXIS M4328-P Panoramic Camera

Marketing Information

Offering 180°/360° coverage and no blind spots, this fisheye camera supports advanced analytics based on deep learning on the edge. Its ultra-compact size makes it ideal for wherever you need high-quality indoor surveillance.

Great video performance

AXIS M4328-P offers a complete overview with outstanding sharpness, great detail, and no blind spots. This 12 MP camera delivers 360° or 180° panoramic overviews. It includesAxis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. With its stereoscopic lens and digital PTZ, you can choose what to see in the view areas and at what zoom level in up to four areas simultaneously. Furth...ermore, built on ARTPEC-8, the latest Axis system-on-chip (SoC), this panoramic camera enables improved image processing and great image quality.

Deep learning on the edge

This indoor fisheye camera includes adeep learning processing unit (DLPU)enabling improved processing and storage capabilities. Plus, you can collect and analyze even more data than before - on the edge. Additionally, it delivers valuablemetadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it's possible to detect and classify moving objects in a scene - all tailored to specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Great look and ease of installation

This discreet, ultra-compact, affordable camera is quick and easy to install. With accessory casings available, it can also be repainted to blend in with any surroundings. It's delivered factory-focused. And, thanks to digital roll functionality, you can remotely adjust the rotation of the camera overview - no need to do it manually on the camera. Furthermore, AxisZipstream, with support for H.264 and H.265, significantly reduces bandwidth and storage requirements without compromising image quality.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02637001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: M43
Product Model: M4328-P
Product Name: M4328-P Panoramic Camera
Product Type: Network Camera
Technical Information
Recording Formats: 4K
HD Recording: Yes
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/2.3"
Colour Supported: Colour
Field of View: Horizontal field of view 182 °/ Vertical field of view 182 °
Effective Camera Resolution: 12 Megapixel
Video
Video Formats:

• H.265
• Zipstream
• H.264
• H.264B
• H.264H
• H.264M
• Motion JPEG
• H.264B (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC)

Maximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 1.20 mm
Lens Included: Yes
Maximum Aperture: f/2.2
Exposure
Shortest Shutter Speed: 1/8100 Second
Longest Shutter Speed: 1/2 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• TLS
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• mDNS (Bonjour)
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTP
• SRTP
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• DHCPv4/v6
• SSH
• LLDP
• CDP
• MQTT v3.1.1
• Syslog
• ZeroConf

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Power Source Type: PoE
Physical Characteristics
Mount Type:

• Junction Box Mount
• Bracket Mount

Form Factor: Fisheye
Color Family: White
Product Color: White
Height: 51 mm
Diameter: 101 mm
Weight (Approximate): 300 g
Environmental Conditions
Maximum Operating Temperature: 40°C
Maximum Operating Humidity: 85%
Miscellaneous
Features:

• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• Wide Dynamic Range
• 3D Digital Noise Reduction
• Noise Detection
• Mirror
• Password Protection
• Cross Line Detection
• Vehicle Detection
• Human Detection
• Motion Detection
• Day/Night

Indoor/Outdoor: Indoor
Package Contents:

• M4328-P Panoramic Camera
• Installation Guide
• Owner authentication key

TAA Compliant: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 5 Year
