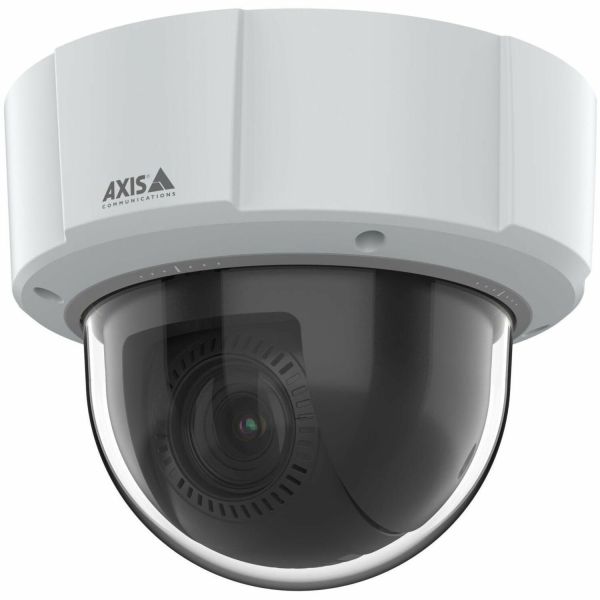

AXIS M5526-E PTZ Camera

Marketing Information

Ideal both indoors and out, this affordably priced camera offers great image quality in 4 MP with 10x optical zoom. And, with a deep learning processing unit, it enables advanced features and powerful analytics that run on the edge.

Don't miss a thing

AXIS M5526-E delivers great image quality in 4 MP. It offers a continuous 360° pan and with 10x optical zoom, you can benefit from sweeping overviews and zoom-in to get the details. Thanks to autofocus it ensures detailed, sharp images-every time. Plus, day/night functionality provides high-quality black-and-white video with improved sensitivity in even lower light. Furthermore, it includesForensic WDRfor clarity when there's both dark and light areas in the scene. ...;

Flexible installations-indoors and out

AXIS M5526-E is compatible with all Axis PTZ mounts and can be mounted both indoors and out. It comes with three scene profiles (indoor, outdoor, and forensic) with different image settings optimized to suit specific scenarios. Plus, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Built on ARTPEC 8, the latest Axis system-on-chip (SoC), it includes a deep learning processing unit (DLPU)enabling improved processing and storage capabilities. And thanks to AXIS Object Analytics, it can detect and classify humans, vehicles, and types of vehicles-all tailored to your specific needs.

Enjoy more for less

This affordably priced camera offers great value for money. It delivers great image quality in 4MP. And with audio and I/O connectivity, you can integrate peripheral equipment for instance a microphone to extend the value of your system. AxisZipstreamwith H.264 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, AxisEdge Vault, a hardware-basedcybersecurityplatform, safeguards the device and protects sensitive information from unauthorized access.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02768001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: M5526-E
Product Name: M5526-E PTZ Camera
Product Type: Network Camera
Technical Information
Recording Formats: HD
HD Recording: Yes
Camera Iris:

• Auto
• P-iris

Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/3"
Colour Supported: Colour
Field of View: Horizontal: 59.1°-6.5°, Vertical: 35°-3.67°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:

• H.264
• H.265
• Motion JPEG
• H.264B (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC) Main Profile
• Zipstream

Maximum Video Resolution: 2668 x 1512
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 4.70 mm
Maximum Focal Length: 47 mm
Lens Included: Yes
Minimum Aperture: f/3
Maximum Aperture: f/1.6
Optical Zoom: 10x
Exposure
Shortest Shutter Speed: 1/27000 Second
Longest Shutter Speed: 0.2 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTP/2
• HTTPS
• TLS
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• UPnP
• SNMP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTP
• RTSP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• ICMP
• DHCPv4/v6
• ARP
• SSH
• LLDP
• CDP
• MQTT v3.1.1
• Syslog
• ZeroConf
• IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)
• IEEE 802.1AR
• ONVIF

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 11.70 W
Input Voltage:

• 20 V DC
• 28 V DC

Power Source Type:

• DC
• PoE

Physical Characteristics
Form Factor: Dome
Color Family: White
Product Color: White
Weight (Approximate): 1 kg
Environmental Conditions
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: 50°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Day/Night
• Wide Dynamic Range
• Ingress Protection
• HTTPS Encryption
• Password Protection
• Privacy Masking
• White Balance
• PTZ
• Noise Reduction
• 3D Noise Reduction

Indoor/Outdoor: Indoor/Outdoor
Package Contents:

• M5526-E PTZ Camera
• Installation guide
• Bayonet adapter
• Terminal block connectors
• Connector guard
• Owner authentication key

Impact Protection Rating: IK09
Ingress Protection Rating: IP66
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 5 Year
