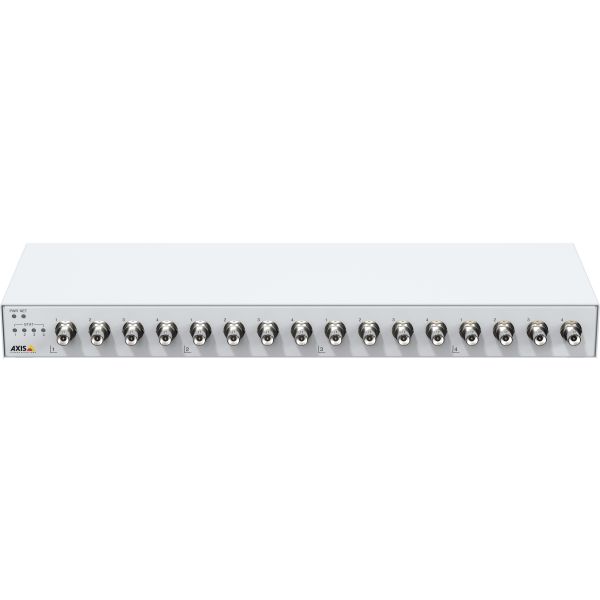

AXIS M7116 Video Encoder

Marketing Information

With AXIS M7116 you can migrate to IP surveillance at your own pace. This cost-effective, 16-channel video encoder supports all types of standard resolution analog cameras including PTZ (pan/tilt/zoom) cameras. It offers support for intelligent analytics as well as built-in cybersecurity features.

Great value for money

This 16-channel video encoder digitizes NTSC/PAL video and delivers high-quality video at 30 frames per second on all channels. It offers remote access allowing you to view video streams on any browser or computer. Additionally, the RS-485 port lets you control analog PTZ (pan/tilt/zoom) cameras. The built-in SD memory card slots allow for edge storage. Featuring Zipstream with support for H.264/H.26...5, AXIS M7116 drastically reduces bandwidth and storage requirements. Furthermore, this compact encoder is rack-mounted, enabling large numbers of analog cameras and audio channels to be integrated into an IP-based, high-density video surveillance system.

Seamless migration to IP surveillance

AXIS M7116 allows you to shift to the world of IP surveillance at your own pace while protecting your investment in analog equipment. Built on an open platform, the encoder makes it possible to use open-standard IT hardware or video management software from the supplier of your choice. It includes intelligent analytics such as motion detection. And, if you use it with the AXIS Camera Station video management software, you only need one license for all 16 channels.

First-class Axis quality

Packed with built-in cybersecurity features, this reliable encoder helps prevent unauthorized access and safeguards your system. It is more secure than DVRs, which typically lack these types of cybersecurity features. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the device is completely free of malware even after a factory default. Plus, thanks to continuous firmware updates, you can always depend on Axis for first-class quality and support.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02036-003
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: M71
Product Model: M7116
Product Name: M7116 Video Encoder
Product Type: Video Surveillance Station
Technical Information
Total Number of Channels: 16
Connectivity Technology: Wired
HD Recording: No
System Components: Video Encoder
Memory
Standard Memory: 1 GB
Video
Video Formats:

• H.264 (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC)
• Motion JPEG

Video Signal Format:

• PAL
• NTSC

Maximum Resolution: 720 x 576
Maximum Frame Rate: 30 fps
Network & Communication
Ethernet: Yes
Remote Management: Yes
Physical Characteristics
Weight (Approximate): 2.05 kg
Miscellaneous
Package Contents:

• M7116 Video Encoder
• Installation Guide
• Windows Decoder 1-User License
• DC Input Plug
• 8 Pcs 2-pin RS485/RS422 Plugs
• Mains Power Supply
• Mounting and Connector Kit

Warranty
Limited Warranty: 5 Year
