AXIS P1245 Mk II Modular Standard Camera

Marketing Information

Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that's easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.

Compact and discreet

With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.

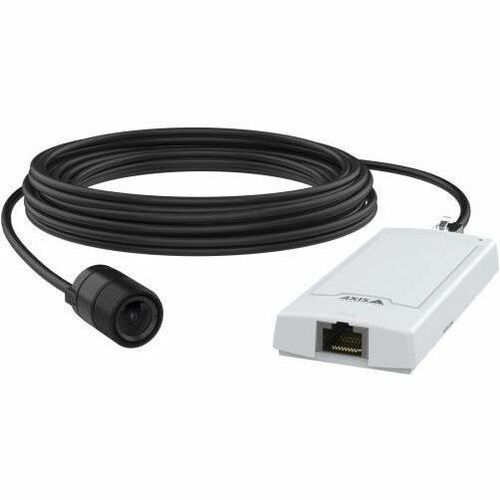

AXIS P1245 Mk II Modular Standard Camera with 8 meter cable option.

Highly flexible

Based on the divided modular camera concept, AXIS P1245 Mk II can b...e installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won't fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it's easy to integrate with other devices. Including a standard sensor unit, thisindoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade

Great image quality and support for advanced analytics

AXIS P1245 Mk II offers1080p resolution with a wide, 111° field of view. AxisZipstreamsignificantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there's both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02857-001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: P12
Product Model: P1245 Mk II
Product Name: P1245 Mk II Modular Standard Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Camera Iris: Fixed
AI-powered: Yes
Languages Support:

• English
• German
• French
• Spanish
• Italian
• Russian
• Simplified Chinese
• Japanese
• Korean
• Portuguese
• Polish
• Traditional Chinese
• Dutch
• Czech
• Swedish
• Finnish
• Turkish
• Thai
• Vietnamese

Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.9"
Colour Supported: Colour
Field of View: Horizontal: 111°, Vertical: 61°
Video
Video Formats:

• H.264
• H.265
• Motion JPEG
• H.264B (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC) Main Profile
• Zipstream

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 2.80 mm
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/2.0
Exposure
Shortest Shutter Speed: 1/16500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTP/2
• HTTPS
• TLS v1
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• mDNS (Bonjour)
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• ICMP
• DHCPv4/v6
• ARP
• SSH
• LLDP
• CDP
• MQTT v3.1.1
• Syslog
• ZeroConf
• IEEE 802.1AR
• IEEE 802.1X (EAP-TLS)
• ONVIF

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 4.10 W
Power Source Type: PoE
Physical Characteristics
Mount Type:

• Bracket Mount
• Swivel Mount
• Recessed Mount

Color Family: White
Product Color: White
Product Material:

• Plastic
• Steel

Weight (Approximate): 75 g
Environmental Conditions
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: 45°C
Minimum Storage Temperature: -40°C
Maximum Storage Temperature: 65°C
Maximum Operating Humidity: 85%
Minimum Storage Humidity: 5%
Maximum Storage Humidity: 95%
Miscellaneous
Features:

• Wide Dynamic Range
• HTTPS Encryption
• SD Card Local Storage
• White Balance
• Mirror
• Privacy Masking
• AI Analytics
• Password Protection
• Motion Detection
• Human Detection
• Vehicle Detection

Indoor/Outdoor: Indoor/Outdoor
Ingress Protection Rating: IP3X
TAA Compliant: Yes
