AXIS P1265 Mk II Modular Pinhole Camera

Marketing Information

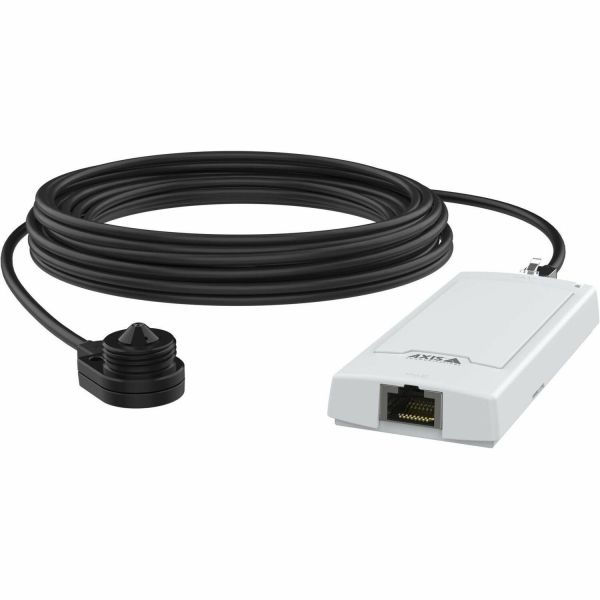

Based on the modular concept, AXIS P1265 Mk II features a tiny, pinhole-sized sensor unit that connects via cable to the main unit, so the two parts can be placed separately from each other. This pinhole sensor unit offers extremely discreet installation. Ideal for a wide range of indoor applications, it's easy to install in tight spaces, for instance, ATMs and ticketing machines. The sensor can be mounted up to 15 m from the main unit and a detachable cable ensures flexible installation and upgrade. Additionally, a deep learning processing unit enables the use of advanced analytics.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02858-001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: P12
Product Model: P1265 Mk II
Product Name: P1265 Mk II Modular Pinhole Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Camera Iris: Fixed
AI-powered: Yes
Languages Support:

• English
• German
• French
• Spanish
• Italian
• Russian
• Simplified Chinese
• Japanese
• Korean
• Portuguese
• Polish
• Traditional Chinese
• Dutch
• Czech
• Swedish
• Finnish
• Turkish
• Thai
• Vietnamese

Display & Graphics
Image Sensor Type: CMOS
Colour Supported: Colour
Field of View: Horizontal: 91°, Vertical: 45°
Video
Video Formats:

• H.264
• H.265
• Motion JPEG
• H.264B (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC) Main Profile
• Zipstream

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 3.70 mm
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/2.5
Exposure
Shortest Shutter Speed: 1/16500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTP/2
• HTTPS
• TLS v1
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• mDNS (Bonjour)
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• ICMP
• DHCPv4/v6
• ARP
• SSH
• LLDP
• CDP
• MQTT v3.1.1
• Syslog
• ZeroConf
• IEEE 802.1AR
• IEEE 802.1X (EAP-TLS)
• ONVIF

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 4.10 W
Power Source Type: PoE
Physical Characteristics
Color Family: White
Product Color: White
Product Material:

• Plastic
• Steel

Weight (Approximate): 75 g
Environmental Conditions
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: 60°C
Minimum Storage Temperature: -40°C
Maximum Storage Temperature: 65°C
Maximum Operating Humidity: 85%
Minimum Storage Humidity: 5%
Maximum Storage Humidity: 95%
Miscellaneous
Features:

• Wide Dynamic Range
• HTTPS Encryption
• SD Card Local Storage
• White Balance
• Mirror
• Privacy Masking
• AI Analytics
• Password Protection
• Motion Detection
• Human Detection
• Vehicle Detection

Indoor/Outdoor: Indoor/Outdoor
Package Contents:

• P1265 Mk II Modular Pinhole Camera
• Installation Guide
• Owner Authentication Key Main Unit
• Sensor Unit
• 8 m (26 ft) Black Cable
• 1 x Locking Nut

Ingress Protection Rating: IP3X
TAA Compliant: Yes
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 5 Year
