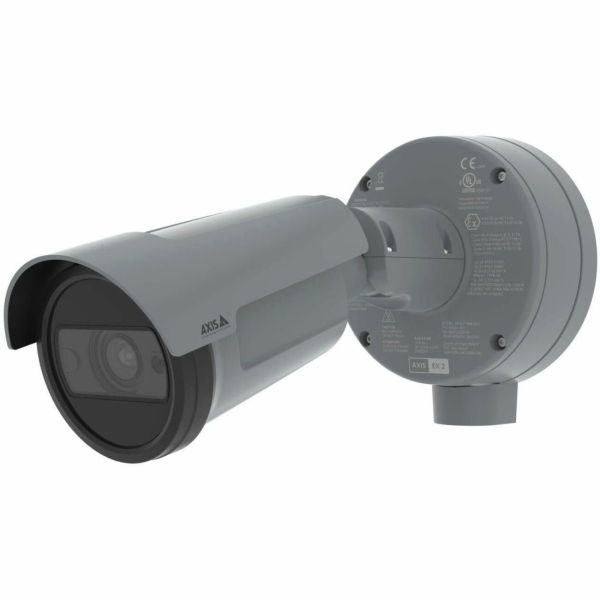

AXIS P1468-XLE Explosion-Protected Bullet Camera

Marketing Information

This sturdy 4K camera is the world's first explosion-protected camera designed for Zone/Division 2. Ideal for health and safety applications as well as operational efficiency, it supports deep-learning based analytics that run on the edge.

A camera that's fit for its purpose

Designed and certified for Zone and Division 2 hazardous locations (Zone 2,22 and Class I/II/III Division 2 according to ATEX/IECEx/cULus), this multitasking camera provides many benefits within health and safety applications as well as operational efficiency. For instance,smoke alert analyticsmonitors for signs of smoke or fire in potentially combustible environments. In operational efficiency applications, it can help increase efficiency, maintain ...peak operability, and maximize uptime. For instance, you can gain deeper understanding and awareness by creating an advanced data-driven sensory network that integrates with existing sensors and systems.

Deep learning-based analytics run on the edge

Built on ARTPEC-8, it includes adeep learning processing unit (DLPU)enabling advanced features and powerful analytics that run on the edge. For instance, by connecting the camera to the process control system and continuously monitoring a process, you can fine-tune the process in real-time to maximize throughput. Plus, you'll be able to extract and sendmetadata, which can be used for trend monitoring and predictive maintenance.

Excellent image quality day or night

AXIS P1468-XLE offers outstanding 4K resolution at up to 60 fps. Thanks toLightfinder 2.0andForensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. And, with a large 1/1.2" sensor it ensures great light sensitivity.OptimizedIRenables surveillance in total darkness up to 40 m (131 ft) without the need for extra lighting. Plus, motion-adaptive exposure reduces the motion blur from approaching or nearby objects. Furthermore,Zipstreamwith support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Secure and sturdy in hazardous areas

Compact and lightweight in design, this explosion-protected camera is easy to install. It offersbuilt-in cybersecurity featuresto help prevent unauthorized access and safeguard your system. For instance, AxisEdge Vaultprotects your Axis device ID and simplifies authorization of Axis products on your network. Furthermore, this sturdy, impact-resistant camera is IP66/67,NEMA 4X, and IK10-rated for protection against dust, rain, snow, and impacts. Plus, it can withstand winds up to 50 m/s.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02534001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: P1468-XLE
Product Name: P1468-XLE Explosion-Protected Bullet Camera
Product Type: Network Camera
Technical Information
Recording Formats: 4K
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 40 m
Night Vision Type: Infrared
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/1.2"
Colour Supported: Colour
Field of View: Horizontal field of view 108 - 49 ° / Vertical field of view 58 - 27 °
Video
Video Formats:

• Zipstream
• H.264
• H.264B
• H.264M
• H.264H
• H.265
• H.265B
• H.265M
• H.265H
• Motion JPEG
• H.264B (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC)

Maximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 6.20 mm
Maximum Focal Length: 12.90 mm
Lens Included: Yes
Minimum Aperture: f/2.9
Maximum Aperture: f/1.6
Optical Zoom: 2.1x
Exposure
Shortest Shutter Speed: 1/66500 Second
Longest Shutter Speed: 2 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 28 V DC
Power Source Type:

• PoE
• DC

Physical Characteristics
Form Factor: Bullet
Durability:

• Impact Resistant
• Weather Resistant
• Explosion Proof

Color Family: Black
Product Color: Black
Diameter: 132 mm
Weight (Approximate): 1.30 kg
Environmental Conditions
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 60°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Wide Dynamic Range
• Day/Night
• Shock Detection
• Motion Detection
• Audio Detection
• Vehicle Detection
• Human Detection
• Video Management System
• SD Card Local Storage
• Built-in IR LED
• PTZ

Indoor/Outdoor: Outdoor
Impact Protection Rating: IK10
Ingress Protection Rating:

• IP66
• IP67

TAA Compliant: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 5 Year
