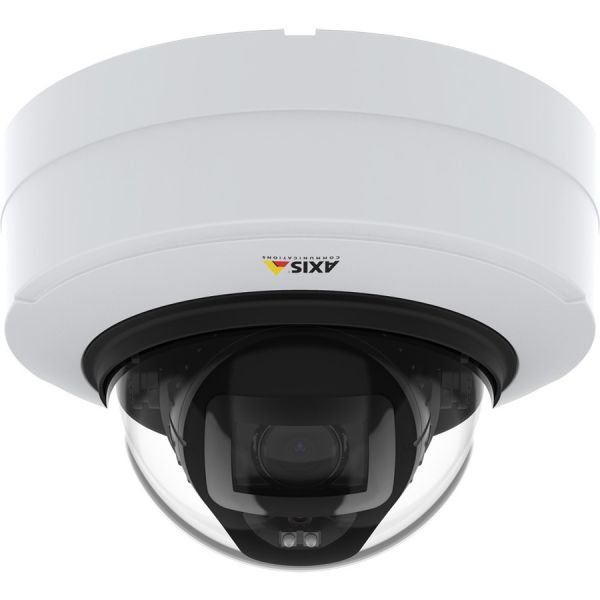

AXIS P3248-LV Network Camera

Marketing Information
AXIS P3248-LV is a robust fixed dome camera that delivers brilliant 4K resolution in any light. This streamlined camera offers cost-efficient installation making it ideal for various surveillance situations, such as in data centers, logistic centers and high-end retail stores.

Excellent image quality- in any light

AXIS P3248-LV offers excellent image quality with brilliant 4K resolution at up to 30 fps. It features Axis Lightfinder 2.0 and Axis Forensic WDR to deliver true colors and great detail in challenging light or near darkness. And, with OptimizedIR you'll enjoy clear, reflection-free footage in complete darkness without the need for extra lighting. Featuring motion-adaptive exposure, it ensures sharp video b...y significantly reducing the motion blur from approaching or nearby objects. And, with a varifocal lens and remote zoom and focus capabilities, there's no need for hands-on fine tuning. Furthermore, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.

Stay on top of it all

AXIS P3248-LV includes AXIS Object Analytics so you can detect and classify humans and vehicles entering a user-defined area or crossing a user-defined virtual line. It's easy to add audio capabilities by connecting a microphone and speaker allowing you to listen in on transactions or incidents and trigger audio warnings. Additionally, you can make your surveillance system even smarter by integrating other equipment via the camera's digital input or output to trigger alarms or actions. Plus, since the input is supervised, an alarm can also be sent if the connection is cut.

We've got you covered- inside and out

Enclosed in a dust and vandal-resistant IK10-rated casing, AXIS P3248-LV camera is protected against redirection, defocusing, and impacts. It's packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn't been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware even after a factory default.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 01597-001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: P32
Product Model: P3248-LV
Product Name: P3248-LV Network Camera
Product Type: Network Camera
Technical Information
Recording Formats: 4K
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 40 m
Night Vision Type: Infrared
Display & Graphics
Image Sensor Type: RGB CMOS
Colour Supported: Colour
Field of View: Horizontal field of view:100°-53° ; Vertical field of view:54°-30°
Video
Video Formats:

• H.264
• H.264 (MPEG-4 Part 10/AVC)
• H.264 BP
• H.264 (MP)
• H.264 HP
• H.265
• H.265 (MPEG-H Part 2/HEVC)
• H.265 (MP)
• Motion JPEG

Maximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 30 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 4.30 mm
Maximum Focal Length: 8.60 mm
Lens Included: Yes
Maximum Aperture: f/1.5
Optical Zoom: 2x
Exposure
Shortest Shutter Speed: 1/8500 Second
Longest Shutter Speed: 1/5 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 12 V DC
Physical Characteristics
Mount Type:

• Conduit Mount
• Ceiling Mount
• Lighting Track Mount
• Wall Mount
• Pendant Mount
• Corner Mount
• Bracket Mount
• Backbox Mount
• Recessed Mount
• Junction Box Mount
• Pole Mount

Form Factor: Dome
Durability:

• Drop Resistant
• Vandal Resistant
• Impact Resistant

Color Family: White
Product Color: White
Height: 103 mm
Diameter: 149 mm
Weight (Approximate): 720 g
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 50°C
Maximum Operating Humidity: 85%
Miscellaneous
Features:

• Wide Dynamic Range
• Built-in IR LED
• Day/Night
• Removable IR Cut-off Filter
• White Balance
• Auto Gain Control
• Defog
• Privacy Masking
• Microphone In
• HTTPS Encryption
• Password Protection

Impact Protection Rating: IK10
Ingress Protection Rating: IP52
