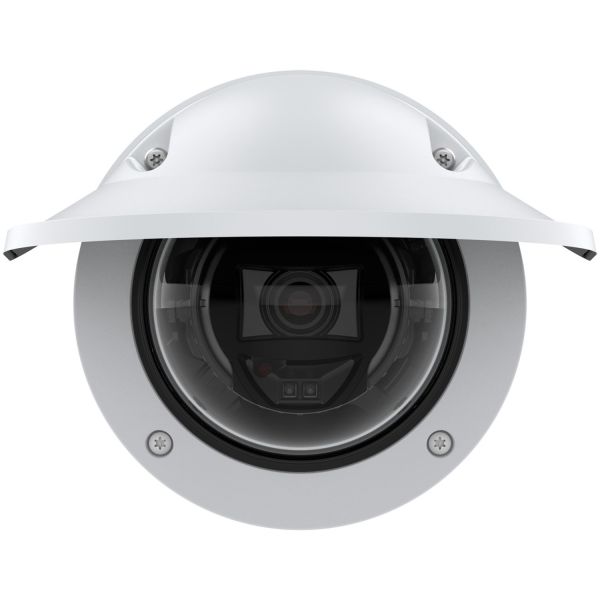

AXIS P3265-LVE Dome Camera

Marketing Information

Based on the latest Axis system-on-chip (SoC), AXIS P3265-LVE offers excellent image quality and advanced analytics based on deep learning on the edge. Packed with cybersecurity features, this unobtrusive fixed dome is ideal for versatile surveillance.

Excellent image quality

AXIS P3265-LVE delivers outstanding image quality and forensic details in 2 MP at up to 60 fps. It's available in two variants with a choice of lenses. The 9 mm lens offers wide-area surveillance ideal for large open areas, and the 22 mm tele lens is ideal for surveillance from a distance generating accurate images needed for advanced analytics. Thanks toLightfinder2.0 andForensic WDR, it delivers true colors and great detail in challenging light... or near darkness. Furthermore, withOptimizedIR, you'll enjoy sharp and clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting.

Deep learning analytics on the edge

Based on ARTPEC-8, the latestAxis system-on-chip (SoC), this high-performance camera includes adeep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before-on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles-all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Versatile and high performance

This easy-to-install dome camera is designed to blend into any environment. Featuring avarifocal lenswith remote zoom and focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this robust, IK10-rated outdoor-ready camera is packed withbuilt-in cybersecurity featuresto prevent unauthorized access and safeguard your system. For instance, AxisEdge Vaultprotects your Axis device ID and simplifies authorization of Axis devices on your network.

Ba

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02333001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: P32
Product Model: P3265-LVE
Product Name: P3265-LVE Dome Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 45 m
Night Vision Type: Infrared
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.8"
Colour Supported: Colour
Field of View: Horizontal field of view: 35°-15° Vertical field of view: 19°-9°
Effective Camera Resolution: 2 Megapixel
Video
Video Formats:

• H.264 (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC)
• Motion JPEG
• H.264B
• H.264M
• H.264 HP
• H.265 (MP)

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 9 mm
Maximum Focal Length: 22 mm
Lens Included: Yes
Maximum Aperture: f/1.6
Optical Zoom: 2.4x
Exposure
Shortest Shutter Speed: 1/66500 Second
Longest Shutter Speed: 2 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• FTP
• SFTP
• SMTP
• mDNS
• Bonjour
• UPnP
• SNMP (v1/v2c/v3)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTCP
• RTP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• DHCPv4/v6
• ARP
• SSH
• SIP
• LLDP
• CDP
• MQTT v3.1.1
• TLS

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Power Source Type: PoE
Physical Characteristics
Mount Type:

• Ceiling Mount
• Bracket Mount
• Junction Box Mount

Form Factor: Dome
Color Family: White
Product Color: White
Height: 104 mm
Diameter: 149 mm
Weight (Approximate): 800 g
Environmental Conditions
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 50°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Day/Night
• Built-in IR LED
• SD Card Local Storage
• Wide Dynamic Range
• Password Protection
• HTTPS Encryption
• Privacy Masking
• Defog
• Cross Line Detection
• Motion Detection

Indoor/Outdoor: Outdoor
Impact Protection Rating: IK10
TAA Compliant: Yes
