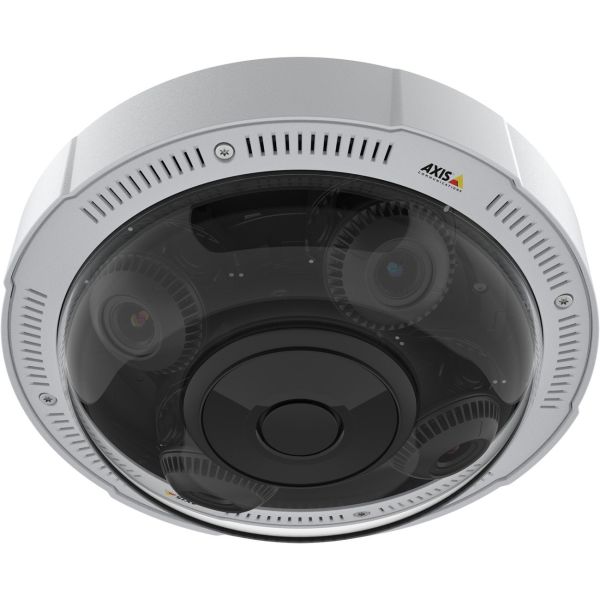

AXIS P3727-PLE Panoramic Camera

Marketing Information

Ideal for large indoor and outdoor areas, AXIS P3727-PLE lets you monitor four different areas with a single camera, around the clock, and even in challenging lighting. You can count on excellent overviews and detailed coverage thanks to the brilliant design of this cost-effective solution.

Wide area surveillance with high-quality overview-24/7

AXIS P3727-PLE offers four channels with 2 MP per channel at 30 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and an automatic IR cut filter. So, you'll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darknes...s as well as undistorted colors during the day.

Thanks to Forensic WDR it ensures clarity when there's both dark and light areas in the scene. Furthermore, it's possible to run AXIS Object Analytics on one of the four channels allowing you to detect and classify people and vehicles entering a user-defined area or crossing a user-defined virtual line.

Brilliant Design

This compact, flexible multidirectional camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. With a tamper-resistance casing and integrated IP66/IP67 rated weather shield that protects against rain, snow, and sunlight, AXIS P3727-PLE is ideal for outdoor wall mounting. It allows for flexible positioning of all four varifocal camera heads so they can be moved and rotated to provide the optimal field of view.

And, each head can be controlled individually so you can monitor scenes in four directions. The camera's sensors can also be twisted, allowing two camera heads to be positioned closer together, so one can take the wide view and the other can zoom in on the same target.

Cost-efficient and secure

With four camera heads in one camera, AXIS P3727-PLE offers fast, accurate, and cost-effective installation. That's because there's only one camera to install, one cable to draw, and one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. Plus, remote zoom and focus capabilities eliminate the need for hands-on fine tuning. And, with snap-fit installation, the casing simply snaps on. AXIS P3727-PLE offers enhanced security functionality to prevent unauthorized access and safeguard your system.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02218001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: P37
Product Model: P3727-PLE
Product Name: P3727-PLE Panoramic Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 15 m
Night Vision Type: Infrared
Number of IR LEDs: 4
Display & Graphics
Image Sensor Type: RGB CMOS
Colour Supported: Colour
Field of View: Horizontal field of view: 96°-49° - Vertical field of view: 53°-27° - Diagonal field of view: 113°-55°
Effective Camera Resolution: 2 Megapixel
Number of Sensors: 4
Video
Video Formats:

• H.264 (MPEG-4 Part 10/AVC)
• H.264 (MP)
• H.264 BP
• H.264 HP
• H.265 (MPEG-H Part 2/HEVC)
• H.265 (MP)
• Motion JPEG
• H.264
• H.265
• H.264M
• H.264H
• H.264B

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 30 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 3 mm
Maximum Focal Length: 6 mm
Lens Included: Yes
Minimum Aperture: f/2.6
Maximum Aperture: f/1.8
Optical Zoom: 2x
Exposure
Shortest Shutter Speed: 1/32500 Second
Longest Shutter Speed: 2 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Power Source Type: PoE
Physical Characteristics
Mount Type:

• Bracket Mount
• Junction Box Mount
• Conduit Mount
• Ceiling Mount
• Pole Mount
• Parapet Mount
• Wall Mount
• Recessed Mount
• Pendant Mount

Form Factor: Dome
Durability:

• Impact Resistant
• Weather Resistant
• Snow Resistant

Color Family: White
Product Color: White
Height: 92 mm
Diameter: 255 mm
Weight (Approximate): 2 kg
Environmental Conditions
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: 50°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Built-in Infrared Illuminator
• Removable IR Cut-off Filter
• SD Card Local Storage
• Day/Night
• White Balance
• Privacy Masking
• Password Protection
• HTTPS Encryption
• Cross Line Detection
• Motion Detection
• Active Tampering Alarm

Indoor/Outdoor: Indoor/Outdoor
Impact Protection Rating: IK09
Ingress Protection Rating:

• IP66
• IP67

TAA Compliant: Yes
