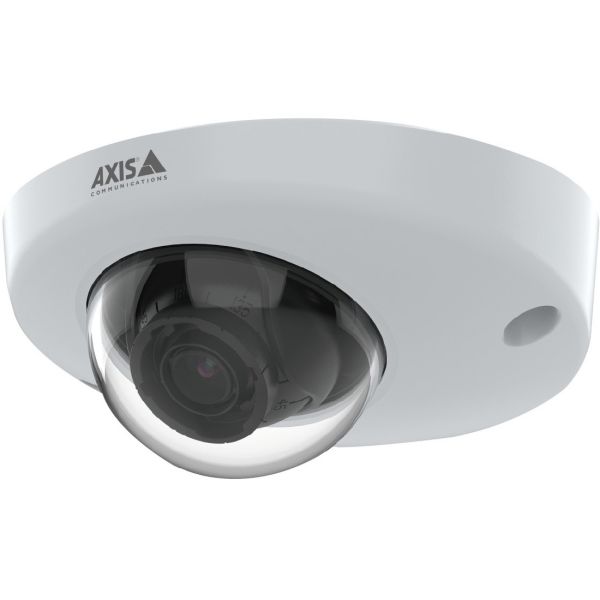

AXIS P3905-R Mk III Dome Camera

Marketing Information

Specifically designed for onboard monitoring on railway vehicles such as trains and trams , this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.

Optimized for onboard surveillance

This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS P3905-R Mk III can distinguish the color of traffic lights in dark scenes. Furthermore, there are various lens options available to adjust field of view for customized monitoring pu...rposes.

For tough onboard conditions

AXIS P3905-R Mk III complies with transportation industry standards including EN50155 and EN45545. This rugged camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installations. Additionally, when used together with AXIS TP3826-E housing it can be mounted on the outside of a vehicle to withstand tough weather.

Secure and cost-effective

This onboard camera offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Axis Zipstream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that's perfect for onboard conditions.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02671-001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: P39
Product Model: P3905-R Mk III M12
Product Name: P3905-R Mk III Dome Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/2.9"
Colour Supported: Colour
Field of View: Horizontal field of view87.6 ° Vertical field of view46.7 °
Effective Camera Resolution: 2 Megapixel
Video
Video Formats:

• Zipstream
• H.264B
• H.265
• Motion JPEG

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 45 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 3.60 mm
Lens Included: Yes
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Ethernet
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mount Type: Vehicle Mount
Form Factor: Dome
Durability:

• Shock Resistant
• Vibration Resistant

Environmental Conditions
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: 55°C
Miscellaneous
Features:

• Rugged Design
• Wide Dynamic Range
• SD Card Local Storage

Impact Protection Rating: IK10
Ingress Protection Rating:

• IP67
• IP66
