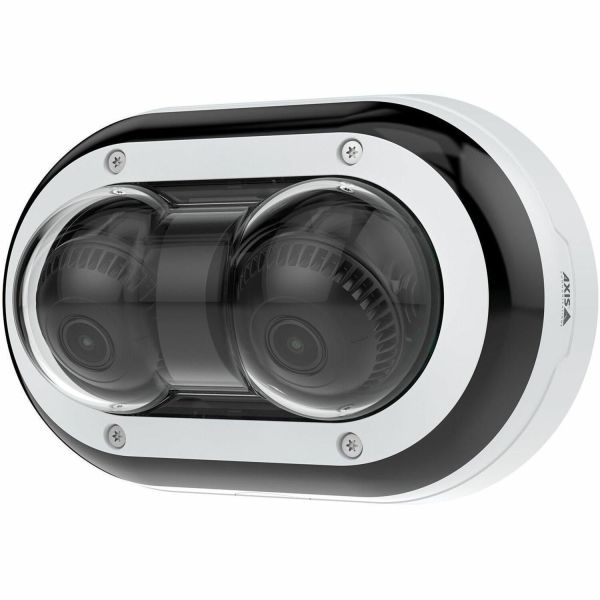

AXIS P4708-PLVE Panoramic Camera

Marketing Information

This dual-sensor camera offers 2x8MP at 30 fps. Lightfinder and Forensic WDR ensure sharp, clear images in challenging or poor light conditions. This high-performance AI-based camera enables improved processing and storage capabilities so you can collect and analyze even more data than before-on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. It offers flexible positioning of both varifocal camera heads and remote zoom and focus capabilities ensure cost-effective installation. Furthermore, Axis Edge Vault safeguards the device and protects sensitive information from unauthorized access.

• 2x 4K, multidirectional camera, with one IP addre...ss
• Support for AI analytics
• 360° IR illumination with 2.5x zoom
• Axis Lightfinder and Forensic WDR
• Axis Edge Vault safeguards the device

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02944-001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: P4708-PLVE
Product Name: P4708-PLVE Panoramic Camera
Product Type: Network Camera
Technical Information
Recording Formats: 4K
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 15 m
Night Vision Type: Infrared
Camera Iris: Fixed
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Languages Support:

• English
• German
• French
• Spanish
• Italian
• Russian
• Simplified Chinese
• Japanese
• Korean
• Portuguese
• Polish
• Traditional Chinese
• Dutch
• Czech
• Swedish
• Finnish
• Turkish
• Thai
• Vietnamese

Wide Dynamic Range Detail: 120 dB
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.8"
Colour Supported: Colour
Field of View: Horizontal field of view: 108°-40° Vertical field of view: 55°-23° Diagonal field of view: 131°-46°
Effective Camera Resolution: 8 Megapixel
Number of Sensors: 2
Video
Video Formats:

• H.264B (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC) Main Profile
• Motion JPEG
• H.264
• H.265
• Zipstream

Maximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 30 fps
Audio
Audio Support: Yes
Lens
Lens Type: Varifocal
Minimum Focal Length: 3.20 mm
Maximum Focal Length: 8.10 mm
Lens Included: Yes
Minimum Aperture: f/3.2
Maximum Aperture: f/1.9
Optical Zoom: 2.5x
Exposure
Shortest Shutter Speed: 1/16000 Second
Longest Shutter Speed: 2 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Gigabit Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• HTTP/2
• TLS
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• mDNS (Bonjour)
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• ICMP
• DHCPv4/v6
• ARP
• SSH
• LLDP
• CDP
• MQTT v3.1.1
• RFC 3164/5424
• UDP/TCP/TLS
• ZeroConf
• IEEE 802.1X (EAP-TLS)
• IEEE 802.1AR
• ONVIF

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 18.80 W
Power Source Type: PoE
Physical Characteristics
Mount Type:

• Junction Box Mount
• Bracket Mount
• Tripod Mount

Form Factor: Dome
Color Family: Black
Product Color: Black
Product Material: Plastic
Weight (Approximate): 975 g
Environmental Conditions
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: 50°C
Minimum Storage Temperature: -40°C
Maximum Storage Temperature: 65°C
Maximum Operating Humidity: 100%
Minimum Storage Humidity: 5%
Maximum Storage Humidity: 95%
Miscellaneous
Features:

• Forensic WDR
• 2D Noise Reduction
• 3D Noise Reduction
• Day/Night
• Privacy Masking
• Auto Gain Control
• Human Detection
• Vehicle Detection
• Cross Line Detection
• Face Detection

Indoor/Outdoor: Outdoor
Impact Protection Rating: IK10
Ingress Protection Rating:

• IP66
• IP67

TAA Compliant: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
