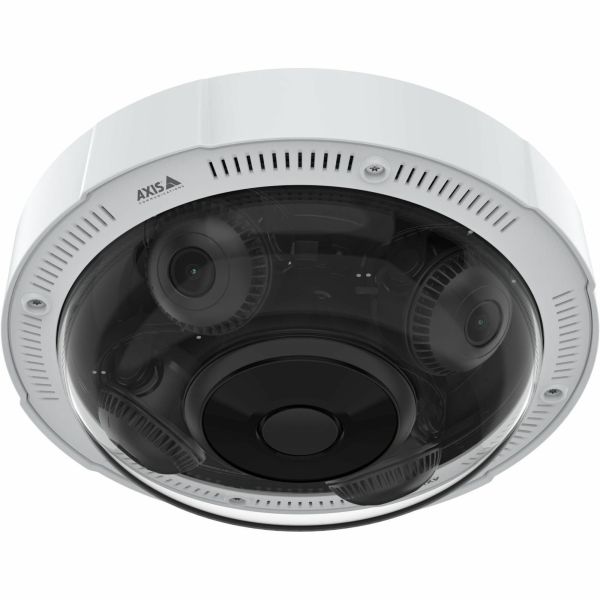

AXIS P3735-PLE Panoramic Camera

Marketing Information

Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.

Wide area surveillance with high-quality overview-24/7

AXIS P3735-PLE offers four channels with 2 MP per channel at 30 fps letting you capture both wide-angle and zoomed-in, detailed views.It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you'll enjoy clear,reflection-free footage and excellent image quality even in low light or complete darkness. Plus,Forensic WDRensures clarity when there's both dark an...d light areas in the scene. Furthermore, it's possible to run meta data and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.

Brilliant Design

This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360°coverage. When mounted on corners, it offers 270°coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it's protected against rain, snow, and sunlight-ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera's sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.

Cost-efficient and secure

With four camera heads in one camera, AXIS P3735-PLE ensures fast, accurate, and cost-effective installation. That's because there's only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras-even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zip stream significantly lowers bandwidth and storage requirements. And AxisEdge Vault, a hardware-based cyber security platform, safeguards the device and protects sensitive information from unauthorized access.

Deep learning analytics

Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU)eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before-on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02633001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Line: Panoramic
Product Series: P37
Product Model: P3735-PLE
Product Name: P3735-PLE Panoramic Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Camera Iris: Fixed
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/2.8"
Colour Supported: Colour
Field of View: Varifocal, 3.2-8.1 mm, F1.9-3.2/Horizontal field of view: 108°-40°/Vertical field of view: 55°-23°/Diagonal field of view: 131°-46°
Effective Camera Resolution: 2 Megapixel
Number of Sensors: 4
Video
Video Formats:

• Zipstream
• Motion JPEG
• H.265 (MPEG-H Part 2/HEVC) Main Profile
• H.264B (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• H.264B
• H.264M
• H.264H
• H.265B
• H.265H
• H.265M

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 30 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 3.20 mm
Maximum Focal Length: 8.10 mm
Lens Included: Yes
Minimum Aperture: f/3.2
Maximum Aperture: f/1.9
Optical Zoom: 2.5x
Exposure
Shortest Shutter Speed: 1/28000 Second
Longest Shutter Speed: 1.5 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Gigabit Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• TLS
• FTP
• SFTP
• SMTP
• SNMP (v1/v2c/v3)
• DNSv6
• DNS
• NTP
• RTSP
• IGMPv1/v2/v3
• DHCPv4/v6
• LLDP
• MQTT
• SMB/CIFS
• mDNS (Bonjour)
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTS
• RTP
• SRTP/RTSPS
• TCP
• UDP
• RTCP
• ICMP
• DHCPv6
• ARP
• SSH
• CDP
• MQTT v3.1.1
• UDP/TCP/TLS
• IEEE 802.1X
• IEEE 802.1AR

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 23.15 W
Power Source Type: PoE
Physical Characteristics
Durability: Tamper Resistant
Color Family: White
Product Color: White
Weight (Approximate): 2 kg
Environmental Conditions
Minimum Operating Temperature: -30°C
Maximum Operating Temperature: 50°C
Miscellaneous
Features:

• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• Wide Dynamic Range
• 3D Digital Noise Reduction
• Noise Detection
• Mirror
• Password Protection
• Cross Line Detection
• Vehicle Detection
• Human Detection
• Motion Detection

Package Contents:

• P3735-PLE Panoramic Camera
• Installation guide
• Connector guard
• Cable gaskets

Impact Protection Rating: IK09
Ingress Protection Rating:

• IP66
• IP6K9K

TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year
