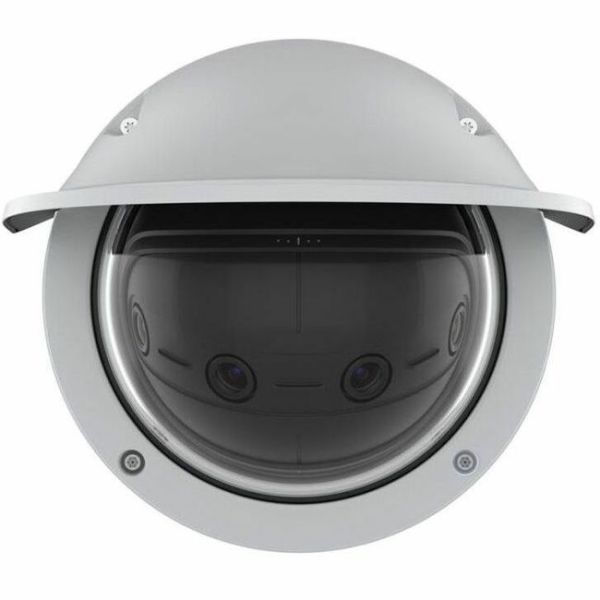

AXIS P3827-PVE Panoramic Camera

Marketing Information

Do you need a camera that ensures complete coverage and excellent image quality with no blind spots? Built on ARTPEC-8, this multisensor, cost-efficient camera supports advanced analytics based on deep learning on the edge

True to life images

This 7 MP multisensor camera offers a single smooth and cohesive video stream with 180° panoramic coverage and captures high resolution images with incredible details up to 30 fps. Thanks to horizon straightening, it ensures visually balanced images. Plus, the operator's viewing experience will be more natural due to the straightened horizon in the image. With seamless stitching across all 4 images, it delivers a coherent-looking image in one single video stream for a perfect ov...erview without any stitch in the center. And the camera automatically optimizes white balance and exposure time. Furthermore, thanks toForensic WDR, it offers excellent forensic image usability.

Complete coverage with support for audio input

AXIS P3827-PVE is perfect when you need to see the whole picture. It offers panoramic overview of extensive areas with 180° horizontal and 90° vertical coverage with no blind spots. And it's possible to mount two cameras back-to-back for a complete 360° overview using AXIS T94V01C Dual Camera Mount. This allows for quick and intuitive situational awareness over a large area and lets the operator visually follow objects across great distances. Furthermore, withedge-to-edgetechnology, it's easy to add whatever connectivity devices you need. For instance, you can add support for audio using AXIS T61 Audio and I/O Interface.

Deep learning on the edge

Built on ARTPEC-8, this high-performance camera includes adeep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before-on the edge. Plus, it delivers valuablemetadatafacilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, AXIS P3827-PVE can detect and classify humans, vehicles, and types of vehicles-all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

Cost-efficient, flexible, and secure

This cost-efficient camera gives you get the benefits of four cameras while paying for just one. And fewer cameras are needed to cover large areas. Additionally, it offers a wide variety of mounting options and adjustable positions to ensure fast, cost-efficient, and easy installation. Furthermore, AXIS P3827-PVE includes built-incybersecurityfeatures. For instance, AxisEdge Vaultprotects your Axis device ID and simplifies authorization of Axis devices on your network. And, for added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02450001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Line: Panoramic
Product Model: P3827-PVE
Product Name: P3827-PVE Panoramic Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.8"
Colour Supported: Colour
Field of View: Horizontal field of view: 180° Vertical field of view: 90°
Effective Camera Resolution: 7 Megapixel
Number of Sensors: 4
Video
Video Formats:

• H.264
• H.265
• Motion JPEG
• H.264B
• H.264H
• H.265M
• H.264B (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• Zipstream

Maximum Video Resolution: 3712 x 1856
Maximum Frame Rate: 30 fps
Lens
Lens Type: Fixed
Maximum Focal Length: 3.30 mm
Lens Included: Yes
Maximum Aperture: f/2.0
Exposure
Shortest Shutter Speed: 1/31500 Second
Longest Shutter Speed: 1.5 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Gigabit Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• TLS
• QoS
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• mDNS
• Bonjour
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTP
• SRTP
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• ICMP
• RFC 3164/5424
• UDP/TCP/TLS
• ZeroConf
• 802.1X

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 12 V DC
Power Source Type:

• PoE
• DC

Physical Characteristics
Mount Type:

• Bracket Mount
• Junction Box Mount
• Wall Mount
• Ceiling Mount
• Conduit Mount

Form Factor: Dome
Color Family: White
Product Color: White
Height: 169 mm
Diameter: 195 mm
Weight (Approximate): 2.30 kg
Environmental Conditions
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 55°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Wide Dynamic Range
• Multi-view Stream
• Noise Detection
• Auto Gain Control
• 3D Noise Reduction
• 2D Noise Reduction
• PTZ
• Motion Detection
• Tampering Alarm
• Audio Detection

Impact Protection Rating: IK10
Ingress Protection Rating:

• IP66
• IP67

TAA Compliant: Yes
