AXIS 30 W Midspan AC/DC

1067554168
£138.20

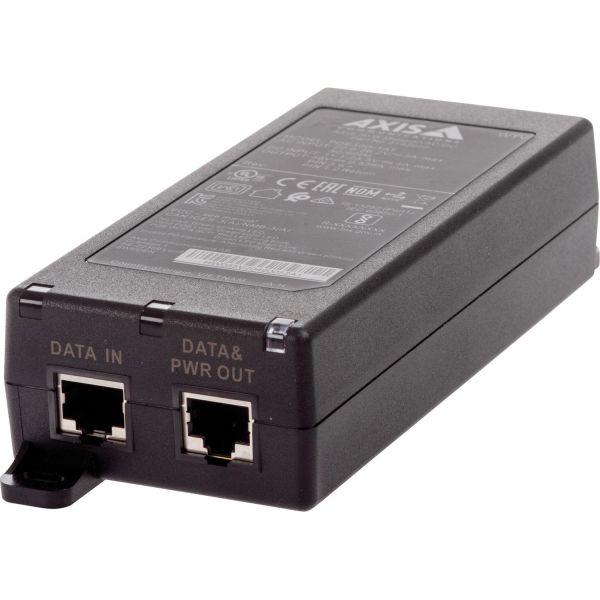

AXIS 30 W Midspan AC/DC
AXIS 30 W Midspan AC/DC is available to buy in increments of 1
Environment, key point: Not yet rated
Human, key point: Not yet rated
Animal, key point: Not yet rated
Social, key point: Not yet rated
Durability, key point: Not yet rated
Product Type PoE Injector
Mount Type Wall/Shelf/DIN Rail-mountable
Brand Name AXIS
Output Ports PoE
Product Color Black
Ethics - Environment Rating Coming Soon
Ethics - Animal Rating Coming Soon
Ethics - Human Rating Coming Soon
Ethics - Integrity Rating Coming Soon
Ethics - Durability Rating Coming Soon

Description

Marketing Information

AXIS 30 W Midspan AC/DC is ideal for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. AXIS 30 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 30 W power.

24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras.

10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.


Specifications
Manufacturer<.../span>: Axis Communications
Manufacturer Part Number: 02208001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Name: 30 W Midspan AC/DC
Product Type: PoE Injector
Power Description
Input Voltage: 24 V AC
Maximum Output Voltage: 56 V DC
Maximum Output Power: 30 W
Interfaces/Ports
Input Ports: Gigabit Ethernet
Output Ports: PoE
Physical Characteristics
Product Color: Black
Mount Type: Wall/Shelf/DIN Rail-mountable
Height: 164 mm
Width: 65 mm
Depth: 37 mm
Weight (Approximate): 233 g
Miscellaneous
Additional Information:
  • DC Input Voltage: 10 to 28V DC
  • AC Input Voltage: 24+20%VAC
  • Connectors: Shielded RJ45, EIA568A and 568B 3-pin AC/DC connector
  • Sustainability: PV Cfree Halogen free
  • Display and indicators: POE LED


Compatibility: Network Device
Certifications & Standards:
  • IEEE 802.3af
  • IEEE 802.3at
Safety:
  • IS 13252
  • IEC/EN/UL 62368- 1

Environment:

  • IEC 60068- 2- 1
  • IEC 60068- 2- 2
  • IEC 60068- 2- 14
  • IEC 60068- 2- 78
  • IEC 60068- 2- 6
  • IEC 60068- 2- 27

EMC:

  • EN 550 24
  • EN 55032 Class A
  • EN 6 1 000 - 6- 1
  • EN 6 1 000- 6- 2
  • FCC Part 15 Subpart B Class A
  • KC KN32 Class A
  • KC KN35
  • RCMAS/NZS
  • CISPR 32 Class A,
  • VCCI Class A
  • EAC

NDAA Compliant: Yes
