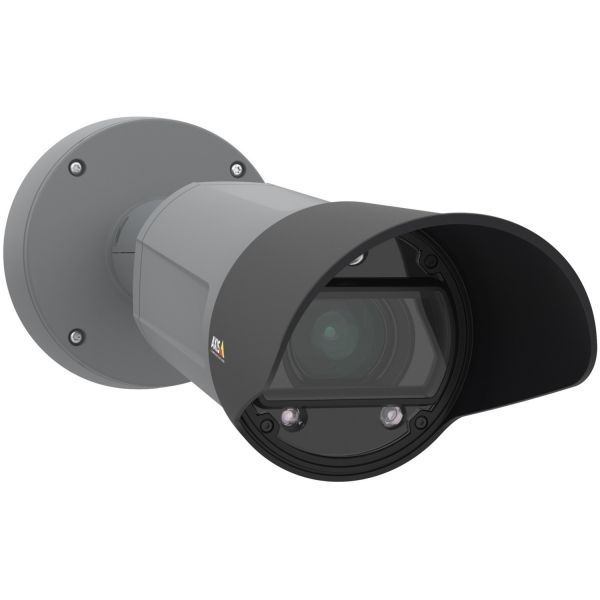

AXIS Q1700-LE License Plate Camera

Marketing Information

AXIS Q1700-LE License Plate Camera is the first dedicated license plate camera from Axis enabling you to capture sharp images 24/7. And thanks to its open platform, you get flexible integration with third-party analytics. This makes AXIS Q1700-LE ideal for road and urban security, vehicle loitering such as suspicious movement, tracking cars or goods and law enforcement purposes for instance gathering forensic evidence or searching for stolen vehicles.

Designed to capture

AXIS Q1700-LE is specially designed to capture license plate images with exceptional clarity and sharpness. It delivers excellent HDTV 1080p and ensures the required pixel density for license plate identification as well as plate markings, such as tran...sporting dangerous goods. Each camera captures traffic in one lane at a range of up to 100 m (328 ft) during daytime. For coverage of multiple lanes, more cameras can easily be installed. In pitch darkness the camera captures license plate images at up to 50 m (164 ft) and up to 100 m (328 ft) with the optional accessory AXIS T90D20 IR-LED Illuminator.

AXIS Q1700-LE includes a built-in license plate capture assistant to ensure easy setup for best video performance. Simply enter the installation height, distance to the vehicle and expected speed, and the license plate capture assistant automatically adjusts the image settings to perfectly fit your specific scene.

Tough for the road

AXIS Q1700-LE captures license plate images with high pixel density at vehicle speeds of up to 130 km/h (81 mph). This robust and weatherproof camera includes an extra-long weathershield for protection in any environment. It can withstand hurricane force winds of more than 60 m/s (134 mph) and with IP66, NEMA 4X and IK10 ratings, you can be sure that it's resistant to both harsh weather conditions and impacts. Plus, the gray color housing and black weathershield blends right in to any traffic environment.

Add any analytics

AXIS Q1700-LE is compatible with AXIS Camera Station and most third-party video management systems (VMS), allowing you to use analytics or other third-party applications to meet your specific needs. You can select edge or server-based software from any third-party vendor to perform further analysis such as license plate recognition or trigger actions.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 01782001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: Q17
Product Model: Q1700-LE
Product Name: Q1700-LE License Plate Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 50 m
Night Vision Type: Infrared
Display & Graphics
Image Sensor Type: RGB CMOS
Colour Supported: Colour
Field of View: Horizontal field of view: 16°-2.3° - Vertical field of view: 9.6°-1.3°
Effective Camera Resolution: 2 Megapixel
Video
Video Formats:

• H.264
• H.264 (MPEG-4 Part 10/AVC)
• H.264 BP
• H.264 (MP)
• H.264 HP
• Motion JPEG

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 18 mm
Maximum Focal Length: 137 mm
Lens Included: Yes
Minimum Aperture: f/4
Maximum Aperture: f/2.9
Optical Zoom: 8x
Exposure
Shortest Shutter Speed: 1/66500 Second
Longest Shutter Speed: 1 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage:

• 24 V AC
• 28 V DC

Power Source Type:

• DC
• AC
• PoE

Physical Characteristics
Mount Type:

• Backbox Mount
• Conduit Mount
• Pole Mount
• Corner Mount
• Bracket Mount

Form Factor: Bullet
Durability:

• Weather Resistant
• Impact Resistant
• Vandal Resistant

Color Family: Dual Colour
Product Color:

• Dark Grey
• Black

Length: 439 mm
Diameter: 147 mm
Weight (Approximate): 2.40 kg
Environmental Conditions
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 60°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Day/Night
• Built-in IR LED
• Built-in Infrared Illuminator
• Removable IR Cut-off Filter
• White Balance
• Wide Dynamic Range
• Defog
• Electronic Image Stabilization
• Privacy Masking
• HTTPS Encryption
• Password Protection
• Motion Detection
• Audio Detection
• Active Tampering Alarm
• SD Card Local Storage

Indoor/Outdoor: Outdoor
Package Contents:

• Q1700-LE License Plate Camera
• Installation Guide
• Windows Decoder 1-user License
• Connector Kit
• Resistorx L-key

Impact Protection Rating: IK10
Ingress Protection Rating: IP66
TAA Compliant: Yes
NDAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
