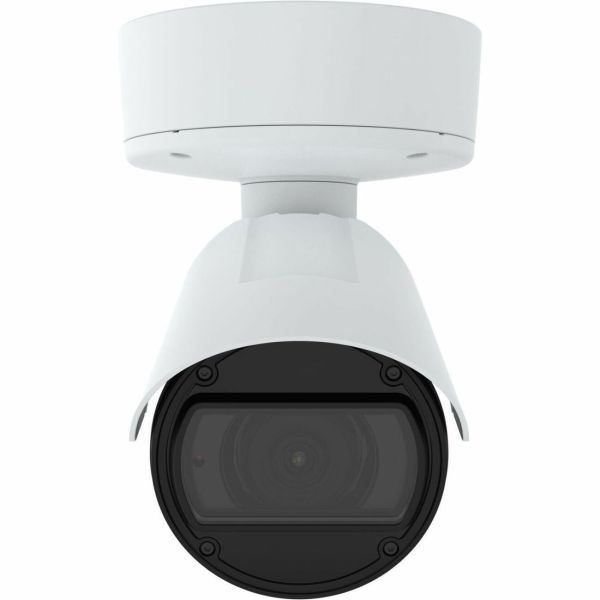

AXIS Q1805-LE Bullet Camera First-class 2 MP surveillance with 32x zoom

Marketing Information

AXIS Q1805-LE delivers HDTV 1080p at 90 fps and 32x optical zoom for all the details. This easy-to-install camera features IDC network connectors as well as a spacious back box for secure cable management. With PoE-out, it can power other devices such as a strobe siren or audio speaker. A deep learning processing unit makes it possible to take advantage of intelligent tailor-made applications based on deep learning on the edge. And, with AXIS Object Analytics it's possible to detect and classify moving objects. Furthermore, Axis Edge Vault safeguards your device and offers secure key storage with FIPS 140-2 level 2 certification.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02504001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: Q18
Product Model: Q1805-LE
Product Name: Q1805-LE Bullet Camera First-class 2 MP surveillance with 32x zoom
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 100 m
Night Vision Type: Infrared
Camera Iris: P-iris
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.8"
Colour Supported: Colour
Field of View: Horizontal field of view: 60°-2.3°, Vertical field of view: 39°-1.3°
Effective Camera Resolution: 2 Megapixel
Video
Video Formats:

• Motion JPEG
• H.265 (MPEG-H Part 2/HEVC) Main Profile
• H.264B (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• H.264M (MPEG-4 Part 10/AVC)

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 90 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 4.30 mm
Maximum Focal Length: 137 mm
Lens Included: Yes
Minimum Aperture: f/4
Maximum Aperture: f/1.4
Optical Zoom: 32x
Exposure
Shortest Shutter Speed: 1/111000 Second
Longest Shutter Speed: 2 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Gigabit Ethernet
Protocols:

• IPv4
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• HTTP/2
• TLS
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• mDNS (Bonjour)
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTP
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• DHCPv4/v6
• SSH
• LLDP
• CDP
• MQTT v3.1.1
• Syslog
• ZeroConf
• EAP/TLS
• IEEE 802.1X
• IEEE 802.1AR
• ONVIF

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 51 W
Input Voltage:

• 10 V DC
• 28 V DC
• 20 V AC
• 24 V AC

Power Source Type:

• DC
• AC
• PoE

Physical Characteristics
Form Factor: Bullet
Durability:

• Impact Resistant
• Weather Resistant

Color Family: Dual Colour
Product Color:

• White
• Black

Weight (Approximate): 3.20 kg
Environmental Conditions
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 60°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Day/Night
• Built-in IR LED
• Motion Sensor
• Vehicle Detection
• Human Detection
• HTTPS Encryption
• Privacy Protection
• White Balance
• Ingress Protection
• Electronic Image Stabilization

Indoor/Outdoor: Outdoor
Package Contents:

• 1 x Q1805-LE Bullet Camera First-class 2 MP surveillance with 32x zoom
• 1 x installation guide
• 1 x terminal block connector
• 1 x RJ45 cable
• 1 x connector guard
• 1 x cable gaskets
• 1 x owner authentication key

Impact Protection Rating:

• IK08
• IK10

Ingress Protection Rating:

• IP66
• IP67

TAA Compliant: Yes
Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 5 Year
