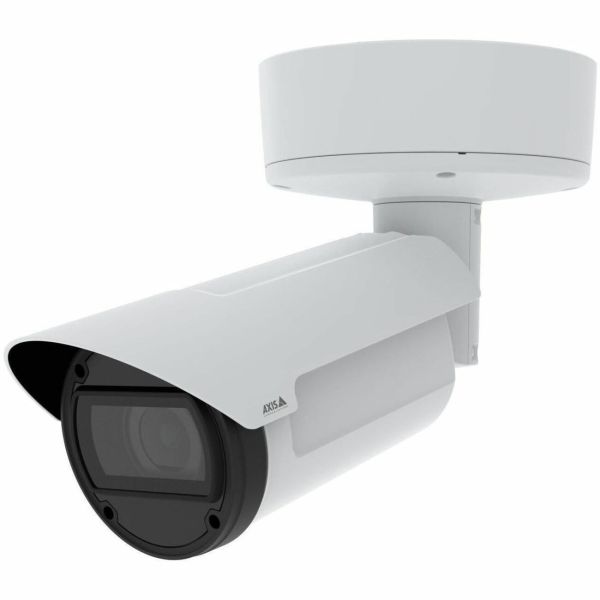

AXIS Q1808-LE Bullet Camera

Marketing Information

This powerful camera delivers outstanding 4K and ultra-high light sensitivity. It's available with a wide lens for open areas or a tele lens for surveillance from a distance. Plus, with PoE out you can connect and power an additional device.

Excellent forensic details and powerful performance

Featuring a 4/3"image sensor, AXIS Q1808-LE offers exceptional low-light performance. And, thanks to Lightfinder 2.0 it ensures true colors in almost complete darkness. In addition, adeep learning processing unit (DLPU)lets you run advanced features and powerful analytics on the edge. It offers improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuablemetadatafac...ilitating fast, easy, and efficient forensic search capabilities in live or recorded video.

Great coverage in wide, open areas

With a wide (12 - 48 mm) Canon lens and 90°-21° horizontal field of view, AXIS Q1808-LE is perfect for surveillance in wide, open areas. It offers 4x zoom and outstanding light sensitivity to ensure excellent forensic details. Plus, white light IR LEDS (850 nm) let you switch to white light to deter unwanted activity.

Excellent details at great distances

With a tele (50 - 150 mm) Canon lens and 21°-7° horizontal field of view, AXIS Q1808-LE is perfect for great details at long distances. With an additional 3x zoom, it's ideal for identification purposes. Plus, Optimized IR allows for surveillance in complete darkness up to 120 m (394 ft) without the need for extra lighting.

Enjoy big savings

Not only does this powerful camera deliver outstanding 4K details, but thanks toZipstreamH.264/ H.265, it also significantly reduces bandwidth and storage requirements. And, with storage profile enabled, you'll enjoy the optimal level of Zipstream for your video storage - regardless of yourVMS. Even at night, when images contain a high level of noise, this powerful camera ensures low bandwidth and great details. In addition, PoE out lets you connect and power another device without any additional cabling. This eliminates the need to rent extra ports and simplifies installation. For instance, you can easily connect a horn speaker, strobe siren, or even another camera. Furthermore, dynamic power mode together with low power profile reduces power demands by as much as 50% in certain temperature ranges.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02507-001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: Q1808-LE
Product Name: Q1808-LE Bullet Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 120 m
Night Vision Type: Infrared
Camera Iris:

• Auto
• P-iris

Infrared (IR) Cut-off Filter: Yes
Languages Support:

• Simplified Chinese
• English
• German
• French
• Spanish
• Italian
• Russian
• Japanese
• Korean
• Portuguese
• Polish
• Traditional Chinese
• Dutch
• Czech
• Swedish
• Finnish
• Turkish
• Thai
• Vietnamese

Wide Dynamic Range Detail: 120 dB
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 4/3"
Colour Supported: Colour
Field of View: Horizontal field of view: 21°-7° Vertical field of view: 12°-4°
Effective Camera Resolution: 10 Megapixel
Video
Video Formats:

• H.264M (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• Motion JPEG
• H.264B (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC) Main Profile
• H.264
• H.265
• Zipstream
• H.264M
• H.264B
• H.264H

Maximum Video Resolution: 3712 x 2784
Maximum Frame Rate: 60 fps
Exposure
Shortest Shutter Speed: 1/45500 Second
Longest Shutter Speed: 2 Second
PTZ Modes: Digital PTZ
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Gigabit Ethernet
Protocols:

• ONVIF
• IPv4
• MQTT
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• TLS
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• mDNS (Bonjour)
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• ICMP
• DHCPv4/v6
• ARP
• SSH
• LLDP
• SIP
• CDP
• MQTT v3.1.1
• ZeroConf
• IEEE 802.1AR
• IEEE 802.1X (EAP-TLS)

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 51 W
Input Voltage:

• 10 V DC
• 28 V DC
• 20 V AC
• 24 V AC

Power Source Type:

• PoE
• AC
• DC

Physical Characteristics
Form Factor: Bullet
Durability: Impact Resistant
Weight (Approximate): 3.20 kg
Environmental Conditions
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 60°C
Minimum Storage Temperature: -40°C
Maximum Storage Temperature: 60°C
Maximum Operating Humidity: 100%
Minimum Storage Humidity: 5%
Maximum Storage Humidity: 95%
Miscellaneous
Features:

• Wide Dynamic Range
• Day/Night
• Video Management System
• Motion Detection
• Multi-view Stream
• Audio Compression
• HTTPS Encryption
• Privacy Masking
• White Balance
• PTZ

Indoor/Outdoor: Outdoor
Impact Protection Rating:

• IK10
• IK08

Ingress Protection Rating:

• IP66
• IP67

TAA Compliant: Yes
