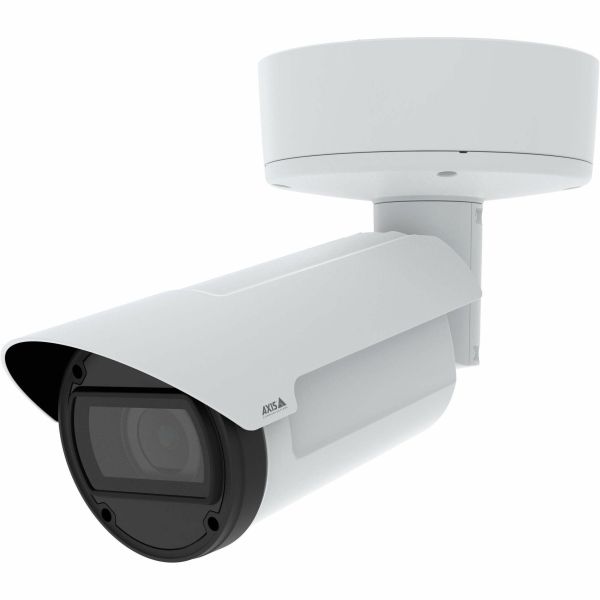

AXIS Q1808-LE Bullet Camera

Marketing Information

With 4K and an ultra-high light sensitive 4/3" sensor, this powerful camera delivers exceptional low-light performance and less noise even at great distances. It's available with a choice of lenses; a wide lens for great coverage in open areas and a tele lens for surveillance from a distance. A deep learning processing unit enables more processing power to run advanced features and powerful analytics on the edge. And, with PoE-out you can connect and power other devices without any additional cabling. Furthermore, this robust, outdoor-ready camera features Axis Edge Vault to safeguard the device and protect sensitive information from unauthorized access.

• Ultra-high light-sensitive 4/3" image sensor
• Wide or tele Canon... lens
• Zipstream with storage profile
• Axis Edge Vault safeguards the device
• PoE-out to power an additional device

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02508001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: Q1808-LE
Product Name: Q1808-LE Bullet Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 120 m
Night Vision Type: Infrared
Camera Iris:

• Auto
• P-iris

Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 4/3"
Colour Supported: Colour
Field of View: Horizontal field of view: 21°-7° Vertical field of view: 12°-4°
Effective Camera Resolution: 2 Megapixel
Video
Video Formats:

• H.264M (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• Motion JPEG
• H.264B (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC) Main Profile
• H.264
• H.265
• Zipstream
• H.264M
• H.264B
• H.264H

Maximum Video Resolution: 3712 x 2784
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 50 mm
Maximum Focal Length: 150 mm
Lens Included: Yes
Maximum Aperture: f/4
Optical Zoom: 30x
Exposure
Shortest Shutter Speed: 1/45500 Second
Longest Shutter Speed: 2 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Gigabit Ethernet
Protocols:

• ONVIF
• IPv4
• MQTT
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• TLS
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• mDNS (Bonjour)
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• ICMP
• DHCPv4/v6
• ARP
• SSH
• LLDP
• SIP
• CDP
• MQTT v3.1.1
• ZeroConf
• IEEE 802.1AR
• IEEE 802.1X (EAP-TLS)

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 51 W
Input Voltage:

• 10 V DC
• 28 V DC
• 20 V AC
• 24 V AC

Power Source Type:

• PoE
• AC
• DC

Physical Characteristics
Form Factor: Bullet
Durability: Impact Resistant
Weight (Approximate): 3.20 kg
Environmental Conditions
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 60°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Wide Dynamic Range
• Day/Night
• Video Management System
• Motion Detection
• Multi-view Stream
• Audio Compression
• HTTPS Encryption
• Privacy Masking
• White Balance
• PTZ

Indoor/Outdoor: Outdoor
Impact Protection Rating:

• IK10
• IK08

Ingress Protection Rating:

• IP66
• IP67

TAA Compliant: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
