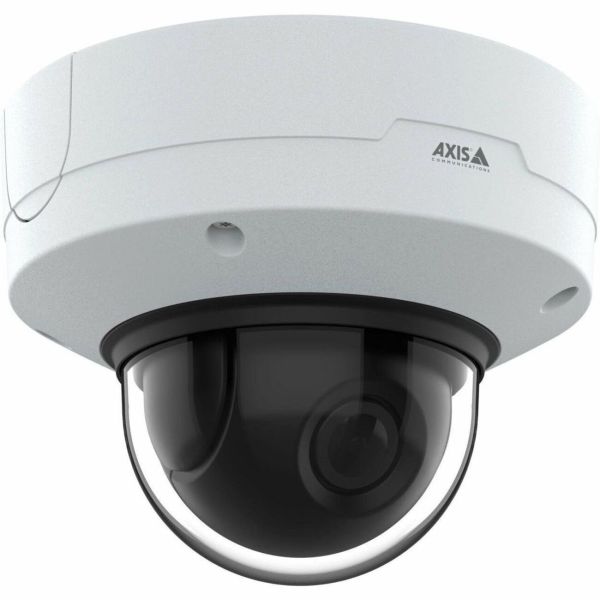

AXIS Q3626-VE Dome Camera

Marketing Information

This top-of-the-line camera offers remote pan-tilt-roll-zoom functionality so it's quick and easy to adjust and later readjust the camera view. Plus, it offers support for advanced analytics based on deep learning on the edge.

Remotely adjust the field of view

This advanced camera offers easy installation, maintenance, and operation. Thanks to remote pan-tilt-roll-zoom (PTRZ) functionality you can quickly adjust and later readjust the camera view remotely over the network saving time and effort. Remote PTRZ also gives you the flexibility and possibility to respond to future changes- without the need to dispatch a technician ensuring less disruption and downtime.

Outstanding image quality

AXIS Q3626-VE ...offers outstanding image quality and forensic details in 4 MP resolution-even in low light. Plus,Lightfinder2.0 andForensic WDRensure true colors and great detail in challenging light or near darkness. Built on the latest Axis system-on-chip (SoC), it features a deep learning processing unit for improved processing capabilities. This allows you to collect and analyze even more data than before-on the edge. It also delivers valuablemetadatafacilitating fast, easy, and efficient forensic search capabilities. Furthermore, AXIS Object Analytics makes it possible to detect and classify moving objects.

Robust and ready for tough environments

This robust, IK10-rated, vandal-resistant camera is ideal for tough environments and rough weather. Electronic image stabilization ensures smooth video in situations where the camera is subject to vibrations. Plus, it includes sensors for shock-, vibration-, and case-open detection. And a conduit connection ensures flexible cable management. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Plus, it offers secure key storage with FIPS 140-2 level 2 certification.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02616001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Series: Q36
Product Model: Q3626-VE
Product Name: Q3626-VE Dome Camera
Product Type: Network Camera
Technical Information
HD Recording: Yes
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/1.8"
Colour Supported: Colour
Field of View: Horizontal field of view: 103°-52° Vertical field of view: 56°-30°
Effective Camera Resolution: 4 Megapixel
Video
Video Formats:

• H.265
• Zipstream
• H.264
• H.264B
• H.264H
• H.264M
• Motion JPEG

Maximum Video Resolution: 2688 x 1512
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 4.30 mm
Maximum Focal Length: 8.60 mm
Lens Included: Yes
Minimum Aperture: f/2.4
Maximum Aperture: f/1.5
Optical Zoom: 2x
Exposure
Shortest Shutter Speed: 1/91000 Second
Longest Shutter Speed: 1 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Input Voltage: 12 V DC
Power Source Type:

• DC
• PoE

Physical Characteristics
Mount Type: Junction Box Mount
Form Factor: Dome
Durability:

• Vandal Resistant
• Weather Resistant
• Shock Resistant
• Vibration Resistant

Color Family: White
Product Color: White
Height: 141 mm
Diameter: 184 mm
Weight (Approximate): 2.10 kg
Environmental Conditions
Minimum Operating Temperature: -50°C
Maximum Operating Temperature: 55°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Back Light Compensation (BLC)
• Highlight Compensation (HLC)
• Wide Dynamic Range
• 3D Digital Noise Reduction
• Noise Detection
• Mirror
• Password Protection
• Cross Line Detection
• Vehicle Detection
• Human Detection
• Motion Detection

Indoor/Outdoor: Outdoor
Package Contents:

• Q3626-VE Dome Camera
• Installation guide
• Conduit adapter
• RESISTORX TR20 screw bit
• Terminal block connectors
• Connector guard
• Cable gasket
• Owner authentication key

Impact Protection Rating: IK10
Ingress Protection Rating:

• IP66
• IP6K9K

TAA Compliant: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 5 Year
