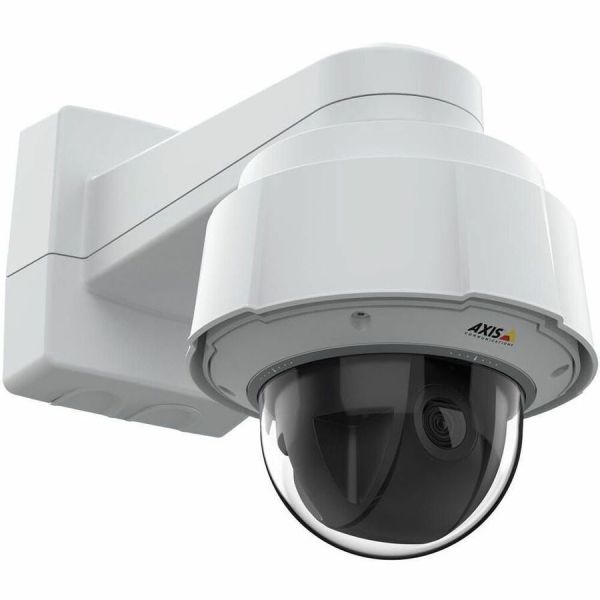

AXIS Outdoor-ready PTZ with UHD 4K Network Camera

Marketing Information

AXIS Q6078-E PTZ Camera offers UHD 4K with 20x optical zoom for outstanding video quality. It offers great overviews and detail with the clearest, sharpest colors. This high-performance outdoor PTZ camera comes with autotracking 2 with click and track functionality, as well as an orientation aid for active object tracking and quick orientation. Featuring built-in cybersecurity such as signed firmware and secure boot it ensures the integrity and authenticity of the firmware. Axis Zipstream with H.264/ H.265 significantly reduces bandwidth and storage requirements. Furthermore, AXIS Object Analytics offers highly granular and nuanced object classification.

• UHD 4K with 20x optical zoom
• Outstanding images with great det...ails
• Zipstream with support for H.264/H.265
• AXIS Object Analytics
• Built-in cybersecurity features

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 02147301
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: Q6078-E
Product Name: Outdoor-ready PTZ with UHD 4K Network Camera
Product Type: Network Camera
Technical Information
Recording Formats: 4K
HD Recording: Yes
Camera Iris: P-iris
Display & Graphics
Image Sensor Type: RGB CMOS
Image Sensor Size: 1/2.5"
Colour Supported: Colour
Field of View: Horizontal field of view: 68.3°-4.2° Vertical field of view: 42.1°-2.34
Video
Video Formats:

• H.264M (MPEG-4 Part 10/AVC)
• H.264H (MPEG-4 Part 10/AVC)
• Motion JPEG
• H.264B (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC) Main Profile
• H.264
• H.265
• Zipstream

Maximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 4.40 mm
Maximum Focal Length: 88.40 mm
Lens Included: Yes
Minimum Aperture: f/3.8
Maximum Aperture: f/2
Optical Zoom: 20x
Exposure
Shortest Shutter Speed: 1/10000 Second
Longest Shutter Speed: 1 Second
Network & Communication
Connectivity Technology: Wired
Ethernet Technology: Fast Ethernet
Protocols:

• ONVIF
• IPv4
• MQTT
• IPv6 USGv6
• ICMPv4/ICMPv6
• HTTP
• HTTPS
• TLS
• DiffServ (QoS)
• FTP
• SFTP
• CIFS/SMB
• SMTP
• mDNS (Bonjour)
• UPnP
• SNMPv1/v2c/v3 (MIB2)
• DNS/DNSv6
• DDNS
• NTP
• NTS
• RTSP
• RTP
• SRTP/RTSPS
• TCP
• UDP
• IGMPv1/v2/v3
• RTCP
• ICMP
• DHCPv4/v6
• ARP
• SSH
• LLDP
• SIP
• CDP
• MQTT v3.1.1
• ZeroConf

Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 66.10 W
Input Voltage:

• 100 V AC
• 240 V AC

Power Source Type:

• PoE
• AC

Physical Characteristics
Form Factor: Dome
Diameter: 232 mm
Weight (Approximate): 3.75 kg
Environmental Conditions
Minimum Operating Temperature: -20°C
Maximum Operating Temperature: 50°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Wide Dynamic Range
• Day/Night
• Video Management System
• Motion Detection
• Multi-view Stream
• Audio Compression
• HTTPS Encryption
• Privacy Masking
• White Balance
• PTZ

Indoor/Outdoor: Outdoor
Impact Protection Rating: IK10
Ingress Protection Rating:

• IP66
• IP67
