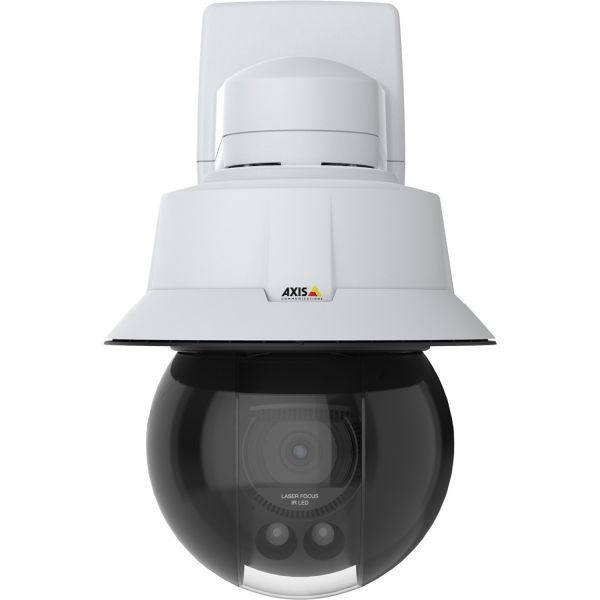

AXIS Q6315-LE PTZ Network Camera

Marketing Information

Ideal for city surveillance, AXIS Q6315-LE offers a ½" sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.

Super surveillance- day and night

AXIS Q6315-LE features very light-sensitive ½" inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it's perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus... for precise focus- every time. It's possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.

Built-in advanced analytics

This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.

Keeping you secure

AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 01924-003
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: Q6315-LE
Product Name: Q6315-LE PTZ Network Camera
Product Type: Network Camera
Technical Information
Recording Formats: Full HD
HD Recording: Yes
Night Vision: Yes
Night Vision Distance: 300 m
Night Vision Type: Infrared
Display & Graphics
Image Sensor Type: CMOS
Colour Supported: Colour
Field of View: Horizontal 60.6 - 2.0 °, Vertical 36.5 - 1.1 °
Video
Video Formats:

• H.264 (MPEG-4 Part 10/AVC)
• H.265 (MPEG-H Part 2/HEVC)
• MJPEG
• H.264
• H.265

Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 60 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 6.91 mm
Maximum Focal Length: 214.64 mm
Lens Included: Yes
Minimum Aperture: f/1.36
Maximum Aperture: f/4.6
Optical Zoom: 31.1x
Exposure
Shortest Shutter Speed: 1/111000 Second
Longest Shutter Speed: 1/2 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Storage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mount Type:

• Corner Mount
• Ceiling Mount
• Pole Mount
• Parapet Mount
• Wall Mount
• Pendant Mount
• Recessed Mount

Form Factor: Dome
Durability:

• Vandal Resistant
• Water Resistant
• Dust Resistant

Color Family: White
Product Color: White
Height: 261 mm
Diameter: 192 mm
Weight (Approximate): 4.80 kg
Environmental Conditions
Minimum Operating Temperature: -50°C
Maximum Operating Temperature: 50°C
Maximum Operating Humidity: 100%
Miscellaneous
Features:

• Wide Dynamic Range
• SD Card Local Storage
• Privacy Masking
• Day/Night
• Password Protection
• HTTPS Encryption
• Motion Detection
• Built-in Infrared Illuminator
• Auto Tracking
• Shock Detection

Indoor/Outdoor: Outdoor
Impact Protection Rating: IK10
Ingress Protection Rating:

• IP66
• IP67
