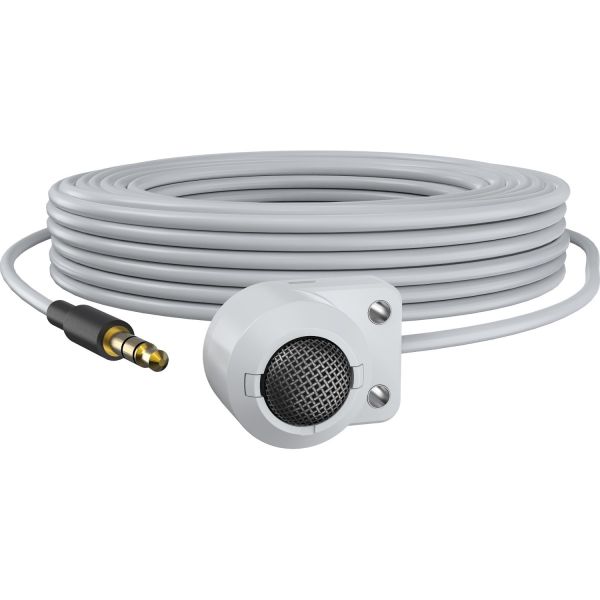

AXIS T8355 Digital Microphone

Marketing Information

• Professional audio surveillance
• Discreet and compact digital microphone
• Support for S/PDIF output
• Hemispherical
• Flexible installation

Are you looking for a professional digital microphone that allows you to monitor and record outstanding audio as part of your video surveillance system?

AXIS T8355 Digital Microphone is a high-performance and discreet microphone designed for best surveillance in large areas. This is the first microphone with an S/PDIF output carrying digital audio signals between the microphone and network product. Thanks to the digital format with lossless transfer of audio signals, electromagnetic immunity is achieved making it ideal for situations where up to... 100 m (328 ft) long cables are required.

From hospitals and schools to banks and retail departments, AXIS T8355 Digital Microphone is ideal for any location where you need distance between the audio source and network product.

Audio right where you need it

AXIS T8355 Digital Microphone offers a broad range of mounting accessories to help make installation fast and flexible. Easily mounted on walls, ceiling or in covert areas, this compact microphone can be subtly concealed from view or visibly used as a deterrent if needed.

AXIS T8355 Digital Microphone can be paired with AXIS Digital Audio Extension Kit to allow you to transmit the digital audio signal using a network cable up to 100 m (109 yards). The cable can be safely placed near power cables and cables carrying high frequency signals. This makes the microphone perfect for surveillance situations where the network product is installed in a control room, away from the audio source, such as is often the case with casinos and airport security control.

Additionally, AXIS T8355 Digital Microphone is powered by the network product, so no additional cables or power supplies are needed, helping minimize time and installation costs.

Superior performance

AXIS T8355 Digital Microphone is the first digital microphone with a S/PDIF output to carry digital audio signals between the microphone and network product. This hemispherical digital microphone can collect sound from every direction, and the quality of the recording is superior to that of the network product's internal microphone. Furthermore, AXIS T8355 Digital Microphone allows for lossless audio transfer so every single bit of detail from the original audio recording is preserved.

Specifications
Manufacturer: Axis Communications
Manufacturer Part Number: 01561001
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: T8355
Product Name: T8355 Digital Microphone
Product Type: Microphone
Technical Information
Connectivity Technology: Wired
Cable Length: 5 m
Sound Mode: Stereo
Minimum Frequency Response: 20 Hz
Maximum Frequency Response: 20 kHz
Microphone
Polar Pattern: Hemispherical
Microphone Sensitivity: -30 dB
Interfaces/Ports
Host Interface: Mini-phone
Physical Characteristics
Height: 20 mm
Width: 20 mm
Length: 27 mm
Weight (Approximate): 90 g
Miscellaneous
Package Contents:

• T8355 Digital Microphone
• Installation Guide
• Drill Template
• White Cover
• Mount Bracket
• Doublesided tape 20x10 mm
• Cable Holders
• Cable Gasket
• M20 3 mm
• Cable Gasket M16 3 mm
• Terminal Block to 3.5 mm
• Audio Extender

TAA Compliant: Yes
NDAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
