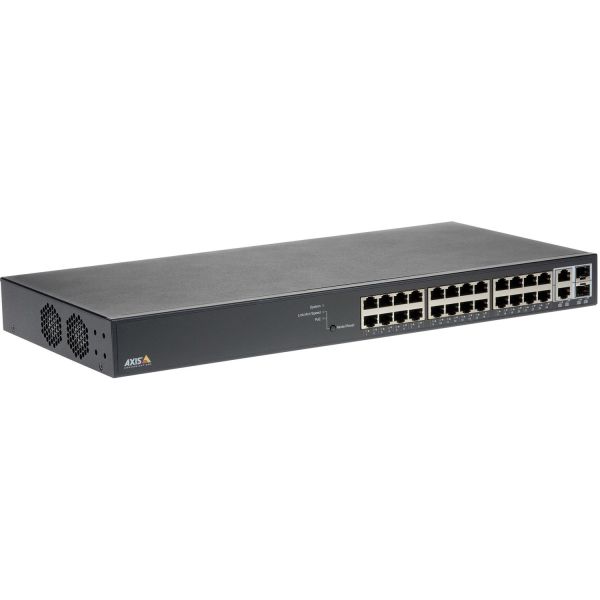

AXIS T8524 PoE+ Network Switch

Marketing Information
24-port switch for efficient network management

AXIS T8524 PoE+ Network Switch is an easy to install 24-port managed Gigabit switch - a perfect complement to Axis' recorders to further simplify setup and installation of surveillance systems. AXIS T8524 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 24 PoE cameras.

Specifications
Manufacturer: Axis Communications
Manufacturer Pa...rt Number: 01192002
Manufacturer Website Address: http://www.axis.com/uk
Brand Name: AXIS
Product Model: T8524
Product Name: T8524 PoE+ Network Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 24
Uplink Port: Yes
Modular: Yes
Stack Port: No
Port/Expansion Slot Details:

• 24 x Gigabit Ethernet PoE+ Network Ports
• 2 x RJ45/SFP Uplink

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-X
I/O Expansions
Total Number of Expansion Slots: 2.0
Expansion Slot Type: SFP
Shared SFP Slot: Yes
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 370 W
Power Source: Power Supply
Redundant Power Supply Supported: No
Physical Characteristics
Form Factor: Rack-mountable
Height: 44 mm
Width: 442 mm
Depth: 211 mm
Weight (Approximate): 3.20 kg
