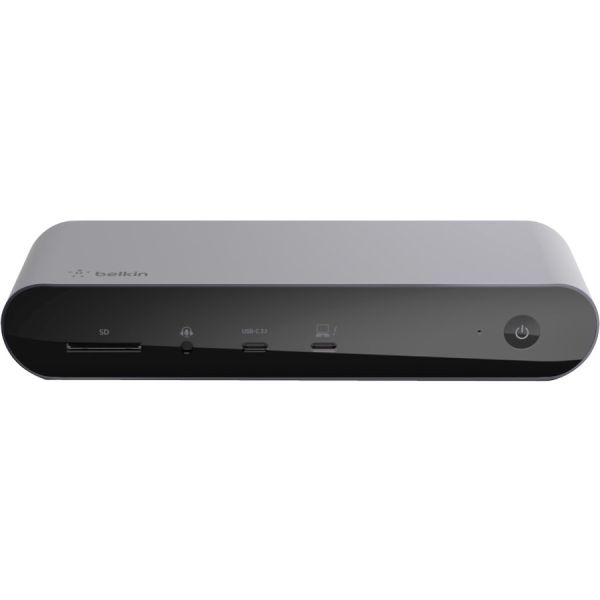

Belkin CONNECT Pro Thunderbolt 4 Dock

Marketing Information

Connect to multiple devices, 4K displays, and up to 90W of Power Delivery with our Pro Thunderbolt 4 Dock. Packed with the latest in Thunderbolt technology, our docking station offers 12 convenient ports to help you create the ultimate workstation.

Ultra-Fast, Super-Connected

Create the ultimate workstation with our Pro Thunderbolt 4 Dock. It has 12 ports to connect your MacBook or Windows laptop to multiple devices, video, ethernet, and power through a single Thunderbolt 4 cable. Get up to 40Gbps data transfer speeds-that's 8x faster than USB 3.0. Charge your laptop and other connected devices simultaneously with up to 90W of Power Delivery. Immerse yourself in a smoother and clearer visual experience with top-tier vi...deo resolutions on as many as three additional displays. Included Thunderbolt 4 cable is compatible with Thunderbolt 3, USB-C, and USB4.

Room For All Your Peripherals

• SD Card Reader
• Audio In/Out
• USB-C 3.1 Gen 2 port supports Fast Charging PD 3.0
• Thunderbolt 4 port
• Power in
• 2x [HDMI 2.0 logo]
• Thunderbolt 4
• Gigabit Ethernet
• 2X USB-A 3.1 ports
• 2X USB-A 2.0 ports

Access Up to 40Gbps of Bandwidth

With data transfer speeds of up to 40Gbps, our Pro Thunderbolt 4 Dock is fast-up to 8x faster than USB 3.0.

8K Resolutions

Connect your MacBook, Windows, or other compatible device to a smooth, vivid, and immersive visual experience. Get up to 8K resolutions for a single display or 2x 4K for dual displays. Triple display support available for select laptop models.

Thunderbolt 4 Certified

Tap into the next generation of Thunderbolt technology with our Thunderbolt 4 certified docking station. Access all the power and speed you'll need for work, play, streaming, and more-even while connected to multiple peripherals and devices-all through a single cable connection.

90W USB-C Power Delivery 3.0

Our Pro Thunderbolt 4 Dock comes equipped with Power Delivery 3.0, delivering up to 90W of charging power to your laptop or other connected device. It also has a USB-C PD 3.0 port so you can fast charge a smartphone, tablet, or other device at the same time.

Specifications
Manufacturer: Belkin International, Inc
Manufacturer Part Number: INC006VFSGY
Manufacturer Website Address: http://www.belkin.com/uk
Brand Name: Belkin
Product Line: CONNECT
Product Series: Pro
Product Name: CONNECT Pro Thunderbolt 4 Dock
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Notebook
• Smartphone
• Monitor
• Tablet

Memory Card Reader: Yes
Memory Card Supported: SD
Number of Displays Supported: 3
Screen Mode Supported:

• 4K
• 8K

Supported Resolutions:

• 3840 x 2160
• 7680 x 4320

Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 4
Number of USB 2.0 Ports: 2
Number of USB 3.1 Gen 2 Type-C Ports: 1
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB Type-A Ports: 2
USB Type-A: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 2
HDMI: Yes
HDMI Version: 2.0
Thunderbolt: Yes
Thunderbolt Ports Quantity: 2
Software
Operating System Supported:

• Windows
• macOS

Power Description
Maximum Power Supply Wattage: 90 W
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 33.9 mm
Width: 200 mm
Depth: 73.2 mm
Miscellaneous
Compatibility: Compatible Products:

• Thunderbolt 4 port compatible
• Compatible with devices that have a video-enabled USB-C port
• Windows 10 RS3 or newer
• MacOS (Big Sur Version 11) or newer
• IPadOS (Type-C iPads only)
• Recommended for Thunderbolt-enabled Laptops manufactured no later than YR 2019
• M1-Based MacBooks can only enable one extended screen
• Intel-Based MacBooks require USB-C to Video adapter to enable two extended screens.

Brand Compatibility:

• Intel
• Apple
