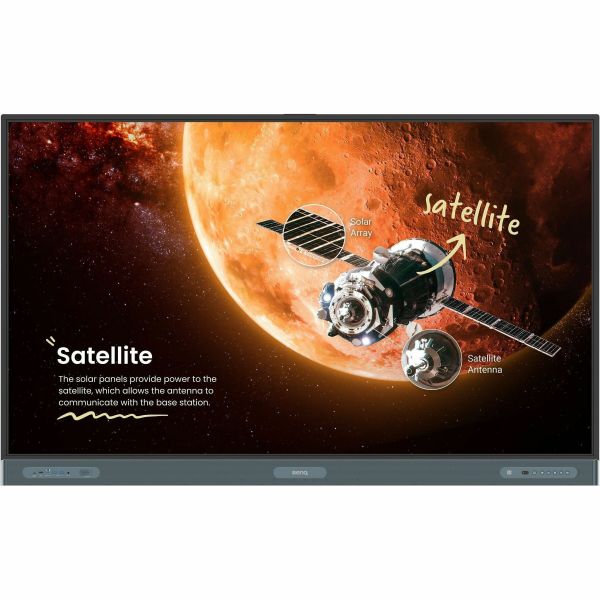

BenQ Board Pro RP7504 Collaboration Display

Marketing Information

A very Google experience

The new EDLA-certified BenQ Board Pro RP04 gives you the best possible classroom experience by combining the power of BenQ software and hardware with official Google services for education.

Google Play

Get access to your favorite education apps right on the BenQ Board.

•


Core services

Google's Core Services come preinstalled on the RP04.

• ...-ui" contenteditable="false">


Collaboration tools

Use any of the Google Docs Editors to open lesson files directly from your board.

Access your files

With Google Drive on the board, you can conveniently open your cloud-based teaching materials and then save them back to your drive once class is done.

Experience enhanced security

Google Play Protect safeguards your displays and prevents you from installing potentially harmful apps and malware.

Hey Google...

Get a helping hand while teaching by speaking to Google Assistant from your remote.

Specifications
Manufacturer: BenQ Corporation
Manufacturer Part Number: 9H.F98TC.DE3
Manufacturer Website Address: http://www.benq.co.uk
Brand Name: BenQ
Product Line: Board Pro
Product Series: RP04
Product Model: RP7504
Product Name: Board Pro RP7504 Collaboration Display
Packaged Quantity: 1
Product Type: Collaboration Display
Display & Graphics
Display Screen Type: LCD
Display Screen Technology: In-plane Switching (IPS) Technology
Screen Mode: 4K UHD
Screen Resolution: 3840 x 2160
Scan Format: 2160p
Aspect Ratio: 16:9
Response Time: 8 ms
Colour Depth: 10-bit
Contrast Ratio:

• 1,200:1
• 50,000:1

Display Orientation: Landscape
Brightness: 450 cd/m²
HDCP Supported: Yes
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Graphics Controller Manufacturer: ARM
Graphics Controller Model: Mali-G57 MC5
Tempered Glass: Yes
Ambient Light Sensor: Yes
Standard Refresh Rate: 60 Hz
Touchscreen Information
Touchscreen: Yes
Multi-touch Screen: Yes
Number of Touch Points: 50
Processor & Chipset
Processor Type: Cortex A78 + A55
Memory
Standard Memory: 8 GB
Storage
Flash Memory Capacity: 128 GB
Audio
Speakers: Yes
Number of Speakers: 2
Microphone: Yes
Number of Microphone Array Elements: 8
RMS Output Power: 20 W
Network & Communication
Ethernet: Yes
Ethernet Technology: Gigabit Ethernet
Wireless LAN: Yes
Bluetooth: Yes
Bluetooth Standard: Bluetooth 5.2
Near Field Communication: Yes
Interfaces/Ports
HDMI: Yes
Number of HDMI Inputs: 4
Number of HDMI Outputs: 1
Total Number of USB Ports: 15
Number of USB 2.0 Ports: 2
Number of USB 3.0 Ports: 13
USB: Yes
Number of Network (RJ-45) Ports: 2
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
Number of VGA Ports: 1
VGA: Yes
DisplayPort: Yes
Serial: Yes
S/PDIF Out: Yes
Software
Operating System Platform: Android
Operating System: Android 13
Software Included:

• EZWrite 6.0
• InstaShare 2
• DMS
• AMS
• X-Sign Broadcast

Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Power Consumption: 109.30 W
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Metal
VESA Mount Compatible: Yes
VESA Mount Standard: 800 x 400
Height: 1060.8 mm
Width: 1709.4 mm
Depth: 117.7 mm
Weight (Approximate): 52 kg
Miscellaneous
Package Contents:

• Board Pro RP7504 Collaboration Display
• VGA cable
• HDMI cable
• USB-C cable
• USB-B cable
• 2 x pens
• 1 x wall mount
• 1 x Remote control

Energy Star: Yes
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
