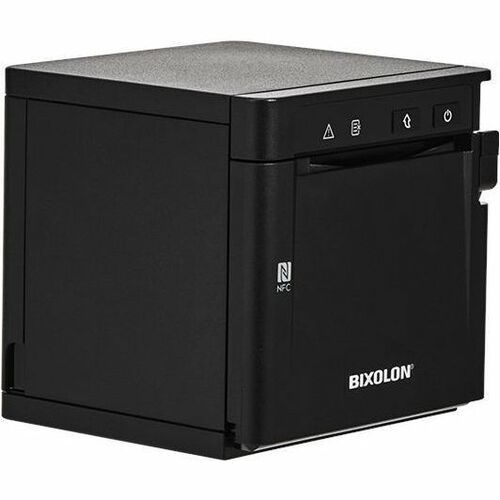

Bixolon SRP-Q302 Direct Thermal Printer

Marketing Information

mPOS Ready

- Compatible with all major operating systems including Android™, iOS™ and Windows®

- Dual-band WLAN (5GHz and 2.4 GHz)

- Dual-mode Bluetooth V4.2 Classic (MFi AP2 certified) and LE

- VMSM, NV image tool are supported via Q300 Utility through various connectivity (Bluetooth, WLAN, USB and NFC)

- Easy Bluetooth pairing, Wi-Fi configuration and printer configuration via NFC

Build Your Own mPOS

- SRP-Q300H supports various USB peripherals, Web & Cloud based printing

- Built-in battery supports the perfect standalone mPOS solutions

- Mini LCD Customer Display enabled by SRP-Q300 series (BCD-3000)

- Robust steel tablet sta...nd safely secures a 10 inch tablet using locking mechanisms and 170° forward-tiling (RTS-Q300)

Reliable and Convenient

- Cube design optimizes space utilization

- 53% smaller than SRP-350plusIII

- Liquid-Barrier™ creates a complete waterproof and dustproof solution (IP21 certified)

- Well-organized cable management

- Fast printing speed up to 220 mm/sec

- All in one Plus™ Interface (Built in USB V2.0FS + Ethernet) + WLAN/ Bluetooth V4.2

Specifications
Manufacturer: Bixolon America, Inc
Manufacturer Part Number: SRP-Q302BAK/BEG
Manufacturer Website Address: http://www.bixolon.com
Brand Name: Bixolon
Product Series: SRP-Q300
Product Model: SRP-Q302
Product Name: SRP-Q302 Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 220 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 72 mm (2.83")
Barcode Symbology Supported:

• QR Code
• PDF417
• ITF
• Codabar
• Code 39
• Code 93
• UPC-E
• UPC-A
• Data Matrix
• EAN-8
• EAN-13
• Code 128
• Codabar (NW-7)
• 1D
• 2D
• GS1-128
• GS1 DataBar Stacked
• GS1 DataBar Truncated
• GS1 DataBar Limited
• GS1 DataBar Omnidirectional
• GS1 DataBar Expanded

Application/Usage:

• Retail
• Restaurant
• Coffee Shop
• Supply Chain Store
• Mobile POS

Character Sets:

• 95 Alphanumeric
• 128 x 35 Graphic
• 32 International

Print Head Life: 150km
Fonts Included:

• JPN: 24 x 24
• Font C: 9 x 24
• Font B: 9 x 17
• Font A: 12 x 24
• CHN
• KOR

Print Technology: Direct Thermal
Interfaces/Ports
USB Host: Yes
USB: Yes
USB Standard: USB 2.0
Network & Communication
Ethernet: Yes
Ethernet Technology: Ethernet
Bluetooth: Yes
Bluetooth Version: 4.2
Near Field Communication (NFC): Yes
Display & Graphics
Display Screen: Yes
Screen Size: 7.6 cm (3")
Display Screen Type: LCD
Cutter
Cutter: Yes
Cutting Method: Automatic
Cutter Life: 1500000 Cuts
Media Types & Handling
Media Type: Receipt
Media Sensor:

• Paper End Sensor
• Cover Open Sensor

Media Thickness: 80 µm
Maximum Roll Diameter: 80 mm
Maximum Label Width: 80 mm
Fonts & Emulation
Language Emulation: BXL/POS
Power Description
Power Source:

• Power Adapter
• AC Supply

Frequency:

• 50 Hz
• 60 Hz

Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Capacity: 2750 mAh
Environmental Conditions
Operating Temperature: 0°C - 40°C
Operating Relative Humidity: 10% - 80%
Storage Temperature: -20°C - 60°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Height: 125 mm
Width: 128 mm
Depth: 125 mm
Weight (Approximate): 1.23 kg
Miscellaneous
Energy Star: Yes
