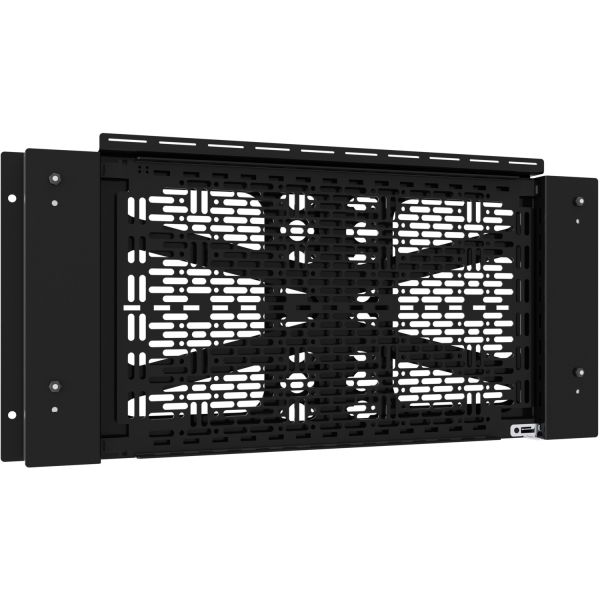

Chief Proximity Component Storage Slide-Lock Panel

Marketing Information

The Proximity® Component Storage Slide-Lock Panel facilitates easy, concealed mounting of AV equipment behind displays. To simplify service and accessibility to the equipment simply slide the storage panel out. Install on wall or attach to Fusion® mounts left, right, or below the display. The built-in and tool-free 15" x 10" Lever Lock™ plate is easily removed and replaced from the slide-lock panel to service the equipment post-installation without touching the display. With a 15 lb. (6.8 kg) weight capacity, this storage panel will hold most small devices for AV installations.

The innovative slides on the CSSLP15X10 secure the storage panel and stop it from falling out or down with a push-to-open and push-to-close me...chanism. This gives designers, consultants, and installers the flexibility to decide where to best position the storage panel behind the display.

The patented universal small device mounting pattern of the Lever Lock plate offers the versatility to mount devices with cable ties, hook and loop fasteners, or nuts and bolts. Use Forward accessories to speed up cable management and small device mounting.

• CSSLP15x10 supports a range of small devices and components on a 9.85" x 15.86" (25 x 40 cm) mounting plate footprint.
• Facilitate offsite integration and service with removable Lever Lock™ panel
  • Compatible with Middle Atlantic Forward® small device mounting clips and cable management
  • Plastic removable rivet included to secure the Lever Lock™ plate to the Slide-Lock Panel
• Simple push-to-open operation to extend and retract slide-lock panel behind displays
• Ultimate storage flexibility!
  • Mounting options in portrait or landscape
  • Install to the left, right or below display
  • Attach to wall or Fusion mounts

The CSSLP15X10 can attach to Fusion ceiling mounts (including LCM & LWM menu boards) or carts and stands.

Specifications
Manufacturer: Legrand Group
Manufacturer Part Number: CSSLP15X10
Manufacturer Website Address: http://www.legrand.co.uk
Brand Name: Chief
Product Line: Proximity
Product Series: CSSLP15X10
Product Name: Proximity Component Storage Slide-Lock Panel
Product Type: Mounting Panel
Product Information
Device Supported:

• Menu Board
• Cart
• A/V Equipment
• Flat Panel Display

Maximum Load Capacity: 6.80 kg
Maximum Screen Size Supported: 127 cm (50")
Features:

• Built-in Lever Lock Plate
• Cable Management
• Hook & Loop Fastener

Mount Pattern: Universal
Physical Characteristics
Product Color: Black
Height: 57.7 cm
Width: 27.2 cm
Depth: 3.5 cm
Miscellaneous
Application/Usage:

• Wall
• Ceiling

Compatibility:

Cheif Menu Boards:

• LCM
• LWM
