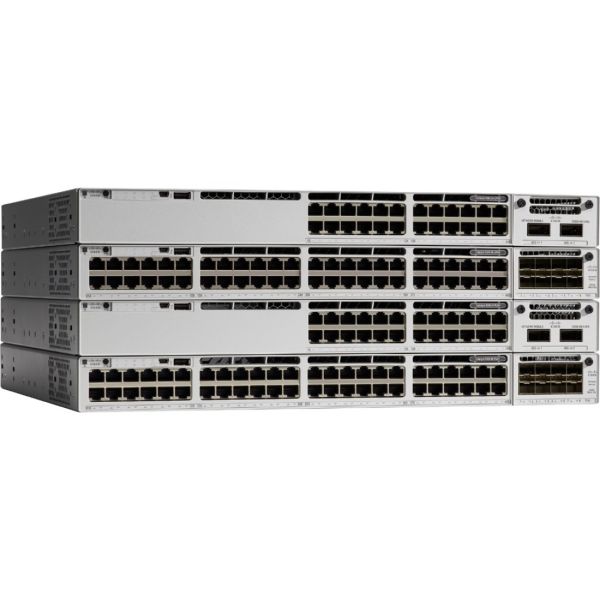

Cisco Catalyst 9300X-12Y Ethernet Switch

Marketing Information

Built for security, IoT, mobility, and cloud

The Cisco^® Catalyst^® 9300 Series switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At up to 1TB, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switche...s are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise^® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower^®, which delivers high-density Power over Ethernet Plus (PoE+), 60W Cisco Universal Power over Ethernet (Cisco UPOE^®) and 90W Cisco UPOE+ ports. The switches are based on the Cisco Unified Access^™ Data Plane 2.0 (UADP) architecture which not only protects your investment but also allows a larger scale and higher throughput. Catalyst 9300X models are based on a new ASIC, UADP 2.5sec, which adds Crypto support in hardware, including IPsec. A modern operating system, Cisco IOS^® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

The Foundation of software-Defined access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: C9300X-12Y-A
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: 9300
Product Model: C9300X-12Y
Product Name: Catalyst 9300X-12Y Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Uplink Port: Yes
Modular: Yes
Stack Port: Yes
Port/Expansion Slot Details:

• 12 x 25 Gigabit Ethernet Expansion Slot
• 1 x Uplink

Media & Performance
Media Type Supported: Optical Fiber
Ethernet Technology: 25 Gigabit Ethernet
Network Technology: 25GBase-X
I/O Expansions
Total Number of Expansion Slots: 13.0
Expansion Slot Type:

• Uplink Module
• SFP28

Network & Communication
Layer Supported: 3
Management & Protocols
Manageable: Yes
Power Description
Frequency:

• 50 Hz
• 60 Hz

Power Source: Power Supply
Redundant Power Supply Supported: Yes
Number of Power Supplies Supported: 2
Plug/Connector Type: IEC 60320 C16
Physical Characteristics
Form Factor: Desktop
Height: 43.9 mm
Width: 444.5 mm
Depth: 447 mm
Miscellaneous
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
