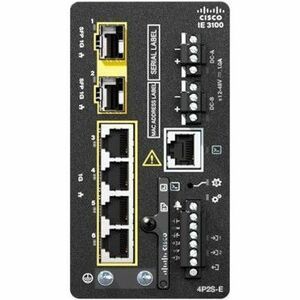

Cisco Catalyst IE3100 Rugged Ethernet Switch

Marketing Information

The Cisco Catalyst IE3100 Rugged Series delivers mainstream adoption of Gigabit Ethernet connectivity in a compact, fixed form-factor switch that is purpose-built for a wide variety of extended enterprise and industrial applications in the most space constrained scenarios.

Product overview

Cisco Catalyst IE3100 Rugged Series switches with up to 20 Gigabit Ethernet interfaces deliver high-speed Gigabit Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. This platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The IE3100 is ideal for space constrain...ed deployments often found in distribution centers, warehouses, and outdoor spaces.

These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.

The Cisco Catalyst IE3100 Rugged Series can be managed with a powerful management tool, Cisco DNA Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI.

The IE3100 Rugged Series switches offer:

• Models offering 6, 10, 12, or 20 Gigabit Ethernet ports with up to 4 Gigabit SFP uplink ports or 2 Gigabit Combo uplink ports
• Robust resiliency enabled by features such as Media Redundancy Protocol (MRP), Resilient Ethernet Protocol (REP), and dual-input DC power supplies
• Simplified software management with universal images
• Support for industrial automation protocols EtherNet/IP (CIP), Modbus and PROFINET
• Support for Layer-2 Network Address Translation

Specifications
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: IE-3100-4P2S-E
Manufacturer Website Address: http://www.cisco.com
Brand Name: Cisco
Product Line: Catalyst
Product Series: IE3100 Rugged
Product Name: Catalyst IE3100 Rugged Ethernet Switch
Product Type: Ethernet Switch
Technical Information
Features:

• Fanless
• IP30

Interfaces/Ports
Total Number of Network Ports: 4
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 4 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port
• 2 x Gigabit Ethernet SFP Expansion Slot

Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Ethernet Technology: Gigabit Ethernet
Network Technology:

• 10/100/1000Base-T
• 1000Base-X

Maximum Data Transfer Rate: 125 MB/s
I/O Expansions
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP
Number of SFP Slots: 2
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.1Q
• IEEE 802.1w
• IEEE 802.1ab
• IEEE 802.1s
• IEEE 802.3ad
• IEEE 802.1x
• IEEE 802.1p
• IEEE 802.1D
• IEEE 802.3ah
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z

Management & Protocols
Manageable: Yes
Reliability
MTBF: 755460 Hour
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 120 W
Input Voltage:

• 12 V
• 54 V
• 9.6 V
• 60 V

Power Source: DC
Power Consumption: 20 W
Physical Characteristics
Form Factor:

• DIN Rail Mountable
• Compact

Height: 127 mm
Width: 64.8 mm
Depth: 129 mm
Weight (Approximate): 907.2 g
Miscellaneous
Application/Usage:

• Enterprise
• Industrial
• Outdoor
• IP Camera
• Wireless Access Point

Certifications & Standards:

• UL/CSA 60950-1
• UL/CSA 62368-1
• CB report and certificate to IEC 62368-1 with all country deviations
• UL/CSA 61010-2-201
• UL121201(Class l, Div 2, groups A-D)
• CSA 22.2 No 213 (Class l, Div 2, groups A-D)
• UL/CSA 60079-0, -15 (Class l, Zone 2, Gc/IIC)
• IEC 60079-0, -7, -15 IECEx test report (Class l, Zone 2, Gc/IIC)
• EN 60079-0, -7, -15 ATEX certificate (Class l, Zone 2, Gc/IIC)

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• China Restriction of Hazardous Substances (China RoHS)

Warranty
Limited Warranty: 5 Year
