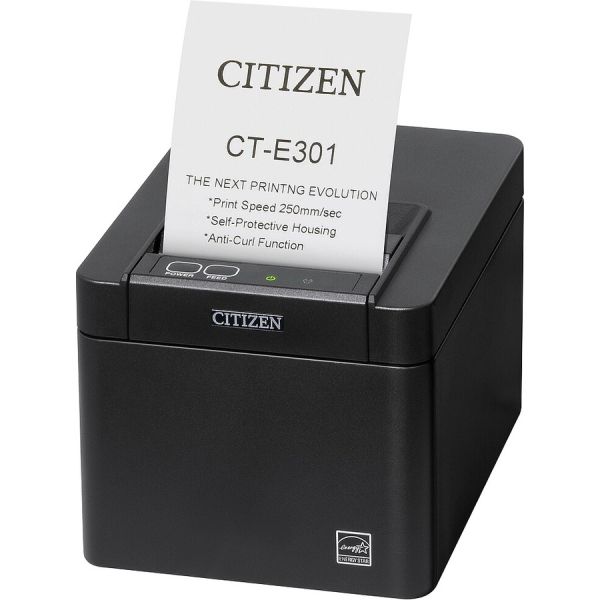

Citizen Modern, High Performance, Top-Exit Printing

Marketing Information

Safer. Cleaner. Printers.

Protected by innovative self-protective housing the CT-E301 is the ultimate printer that protects your printing station and suppresses bacteria. With an SIAA brand mark that fulfils ISO 22196, it is engineered to deliver effective results against bacteria growth and is designed to the highest industry standards. Perfect for environments where cleanliness and hygiene are key.

The CT-E301 provides users with flexible connection options including a singular USB interface model or a triple USB, Serial and Ethernet interface model.

• Innovative self-protective housing and disinfectant ready design
• Stylish, modern design
• Anti-curl function
• One hand media change
...i>Small footprint with the ability to fit alongside POS systems and cash drawers
• USB interface model or triple USB, Serial and Ethernet model available

Specifications
Manufacturer: Citizen Micro HumanTech
Manufacturer Part Number: CTE301X3EBX
Manufacturer Website Address: http://www.citizen-systems.com
Brand Name: Citizen
Product Series: CT
Product Model: CT-E301
Product Name: Modern, High Performance, Top-Exit Printing
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 250 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Width: 72 mm (2.83")
Barcode Symbology Supported:

• UPC-A
• UPC-E
• EAN/JAN-13
• EAN/JAN-8
• Codabar
• Code 39
• Code 128
• Codabar (NW-7)
• PDF417
• GS1 DataBar
• Composite Symbology
• Code 93
• QR Code

Application/Usage:

• Desktop
• Industrial

Features: Cash Drawer Port
Print Head Life: 150KM
Column Capacity: Up to 48 digits (12 × 24: font A) Up to 64 digits (9 ×24: font B) Up to 72 digits (8 ×16: font C) Maximum 26 digits (24×24: Kanji Font A)
Print Technology: Direct Thermal
Interfaces/Ports
Serial Port: Yes
USB Host: Yes
USB: Yes
Network & Communication
Ethernet: Yes
Ethernet Technology: Ethernet
Cutter
Cutter: Yes
Cutter Type: Guillotine
Cut Type: Full/Partial Cut
Cutter Life: 2000000 Cuts
Media Types & Handling
Media Type: Receipt
Media Sensor: Paper Near End Sensor
Media Thickness: 85 µm
Maximum Roll Diameter: 83 mm
Maximum Label Width: 79.50 mm
Fonts & Emulation
Language Emulation: ESC/POS
Power Description
Power Source: AC Supply
Input Voltage:

• 120 V AC
• 230 V AC

Environmental Conditions
Operating Temperature: 5°C - 45°C
Operating Relative Humidity: 10% - 90%
Storage Temperature: -20°C - 60°C
Storage Relative Humidity: 10% - 90%
Physical Characteristics
Color Family: Black
Product Color: Black
Height: 165 mm
Width: 108 mm
Depth: 125 mm
Weight (Approximate): 1.30 kg
Miscellaneous
Platform Supported:

• PC
• Mac
• Android
• iOS

Certifications & Standards:

• CE
• C-UL
• VCCI
• FCC class A
• UL
• CCC
