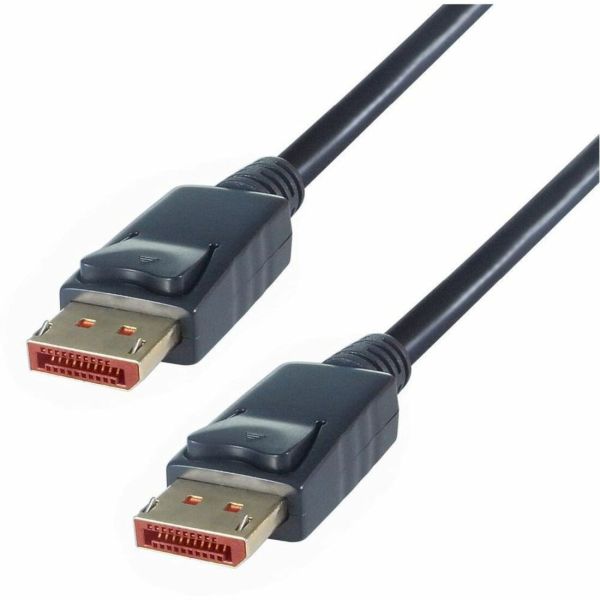

ConnektGear 1m V1.4 8K DisplayPort Connector Cable - Male to Male Gold Lockable Connectors

Marketing Information

Why do you need it?

You require a high specification DisplayPort (DP) cable to connect your DP source to the latest 8K and 5K monitors providing crystal clear pictures and vibrant video.

What does it do?

This V1.4 DisplayPort (DP) cable provides a complete digital display and audio output from your DP source to your DP display. Featuring HDR technology which expands the range of contrast between light & dark images, provides a larger colour palette than SDR creating a more realistic picture with more depth. Delivering up to 8K resolution, faster refresh rate and no lag all from a single DisplayPort cable.

Product Details

• 8K Digital Cinema Standard UHD (Ultra High Definition) display 7680 x 4320 resolution
• 60Hz Refresh rate (60 frames per second)
• Bandwidth: 32.4Gbps
• Supports HDR (High Dynamic Range) colour depth and VRR (Variable Refresh Rate)
• Up to 32 audio channels for speakers up to 1536 kHz rate
• DisplayPort latches protect against the adapter being accidentally disconnected
• Apple 5K Compatible
• Flexible strain relief moulded collar
• Lifetime warranty

Specifications
Manufacturer: Group Gear
Manufacturer Part Number: 26-6010/8K
Manufacturer Website Address: http://www.group-gear.co.uk
Brand Name: ConnektGear
Product Name: 1m V1.4 8K DisplayPort Connector Cable - Male to Male Gold Lockable Connectors
Packaged Quantity: 1 / Bag
Product Type: A/V Cable
Technical Information
Cable Type: DisplayPort
Cable Length: 1 m
Connector Type on First End: DisplayPort 1.4 Digital Audio/Video
Connector Gender on First End: Male
Connector on First End Details: 1 x 20-pin Displayport Digital 1.4 Audio/Video - Male
Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 20-pin Displayport Digital 1.4 Audio/Video - Male
Connector Plating: Gold
Contact Plating: Gold
Shielding: Yes
Jacket Type: VW-1
Device Supported:

• Audio/Video Device
• Monitor

American Wire Gauge: 30 AWG
Data Transfer Rate: 32.4 Gbit/s
Supported Resolution:

• 7680 x 4320
• 3840 x 2160

Features:

• Locking Connector
• HDR Support
• Flexible
• Strain Relief
• Molded
• Dust Cover

Physical Characteristics
Color Family: Black
Product Color: Black
Jacket Color: Black
Insulation Color: Red
Shielding Material: Copper Foil
Jacket Material: Polyvinyl Chloride (PVC)
Material Details:

ABS - Hood PE / PVC - Molding

Miscellaneous
Country of Origin: China
Warranty
Limited Warranty: Lifetime
