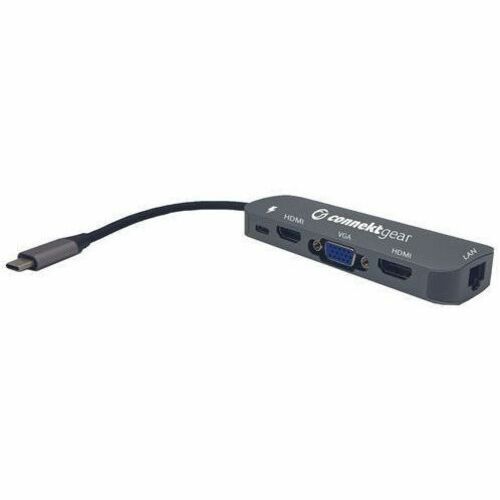

ConnektGear Type C Dual Screen Docking Station with 100W PD

Marketing Information

Why do you need it?

You need a product that will connect your PC accessories to your Type C device along with providing charging capabilities. You also want the option to turn your mobile phone into a Desktop PC like experience.

What does it do?

Connects your external PC accessories such as a monitor, keyboard and mouse to your Type C device. Features two HDMI ports that deliver crystal clear, high quality video. The USB Type C port provides Power Delivery, charging connected devices up to 100W.

Dex compatible turning your mobile device into a Desktop PC like experience, access your apps & files, work on documents and stream videos all displayed on the connected HDMI monitor. Make the most of your ...mobile device with the ease of a desktop environment.

Product Details

• DeX Compatible: turns your mobile device into a PC like experience
• 2x UHD HDMI 4k resolution @30Hz
• 1x VGA 1080P @60Hz
• 1 Gbps Ethernet LAN Port
• 3 x USB 3.0 Ports providing data transfer rates up to 5Gbps
• USB Type C port: Power Delivery up to 100W and data transfer rates up to 5Gbps
• Supports Display Mirror Mode (this copies your current screen to another)
• Supports Display Extend mode (this extends your current screen to another)
• Two Year Warranty

Specifications
Manufacturer: Group Gear
Manufacturer Part Number: 25-0101
Manufacturer Website Address: http://www.group-gear.co.uk
Brand Name: ConnektGear
Product Name: Type C Dual Screen Docking Station with 100W PD
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Notebook
• Monitor
• Smartphone
• Keyboard
• Mouse

Cable Length: 13.50 cm
Features: Power Delivery Pass-through
Number of Displays Supported: 2
Screen Mode Supported:

• Full HD
• 4K @ 60Hz

Supported Resolutions:

• 1920 x 1080
• 3840 x 2160

Maximum Data Transfer Rate: 640 MB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB 3.1 Type C
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 3
Number of USB Type-A Ports: 3
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: Type C Male, Type C Female PD 3.0 up to 100W
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
VGA: Yes
Number of VGA Outputs: 1
Number of HDMI Ports: 2
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows 10
• Mac OS X Server 10.8 Mountain Lion
• Android

Physical Characteristics
Height: 109 mm
Width: 15 mm
Depth: 39 mm
Miscellaneous
Compatibility:

Compatible Devices:

• Samsung Galaxy S10/S10+/S10e
• Samsung Galaxy Note9
• Samsung Galaxy S9/S9+
• Samsung Galaxy Note8
• Samsung Galaxy S8/S8+
• Samsung Galaxy Tab S4

Brand Compatibility: Samsung
Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin: China
Warranty
Limited Warranty: 2 Year
