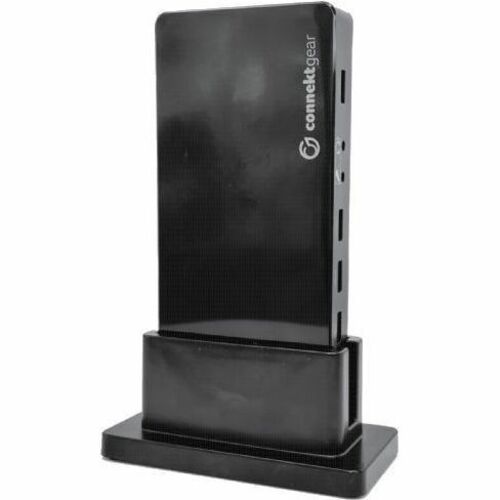

ConnektGear Desktop Type C Dual Screen Docking Station with 100W PD

Marketing Information

Why do you need it?

You need a product that will connect your PC accessories to your Type C device along with providing charging capabilities. You also want the option to turn your mobile phone into a Desktop PC like experience.

What does it do?

Connects your external PC accessories such as a monitor, keyboard and mouse to your Type C device. Features two HDMI ports that deliver crystal clear, high quality video. The USB Type C port provides Power Delivery, charging connected devices up to 100W.

Dex compatible turning your mobile device into a Desktop PC like experience, access your apps & files, work on documents and stream videos all displayed on the connected HDMI monitor. Make the most of your ...mobile device with the ease of a desktop environment.

Product Details

• DeX Compatible: turns your mobile device into a PC like experience
• 2x UHD HDMI 4k resolution @30Hz
• 1x VGA 2K @60Hz
• 1 Gbps Ethernet LAN Port
• 3 x USB 3.0 Ports providing data transfer rates up to 5Gbps
• USB Type C port: Power Delivery up to 100W
• 65W USB C Charging Adaptor included
• 2 x USB 2 Ports (480Mbps)
• Earphone and Microphone 3.5mm Jacks
• T-Bar slot
• Supports Display Mirror Mode (this copies your current screen to another)
• Supports Display Extend mode (this extends your current screen to another)
• Two Year Warranty

Specifications
Manufacturer: Group Gear
Manufacturer Part Number: 25-0102
Manufacturer Website Address: http://www.group-gear.co.uk
Brand Name: ConnektGear
Product Name: Desktop Type C Dual Screen Docking Station with 100W PD
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Smartphone
• Monitor
• Desktop PC
• Keyboard
• Mouse

Features: Power Delivery Pass-through
Number of Displays Supported: 2
Screen Mode Supported:

• 2K
• 4K UHD

Supported Resolutions:

• 3840 x 2160
• 2560 x 1440

Maximum Data Transfer Rate: 640 MB/s
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Audio Line In: Yes
Audio Line Out: Yes
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 3
Number of USB 3.0 Ports: 3
Number of USB Type-A Ports: 6
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB C (Power adaptor) (upto 100W Max, 65W PD power adapter provided), 1 x USB C (connection to computer) (5Gbps data rate, 100W PD power charging)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
VGA: Yes
Number of VGA Outputs: 1
Number of HDMI Ports: 2
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported:

• Windows 10
• Android
• macOS

Power Description
Maximum Power Supply Wattage: 65 W
Power Source Type: Power Adapter
Physical Characteristics
Form Factor: Desktop
Height: 171 mm
Width: 76.6 mm
Depth: 23.1 mm
Miscellaneous
Package Contents:

• Desktop Type C Dual Screen Docking Station with 100W PD
• 65W USB C Charging Adaptor

Country of Origin: China
Warranty
Limited Warranty: 2 Year
