Crestron DM Lite 4K60 4:4:4 Receiver for HDMI, USB 2.0, and Ethernet Signal Extension over CATx Cable

Marketing Information

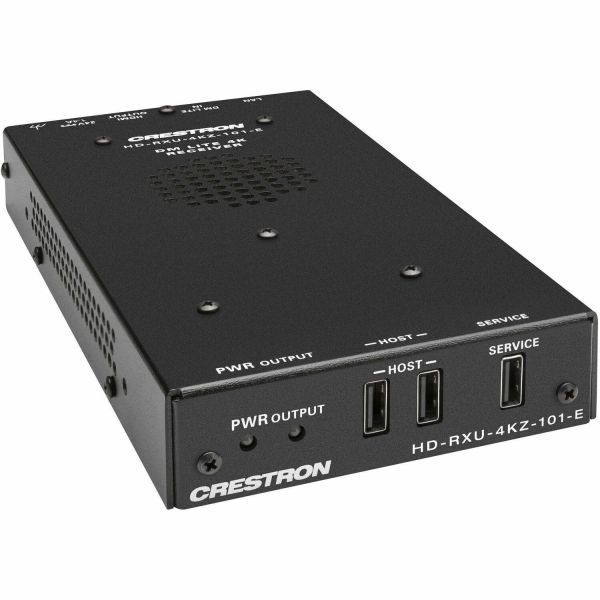

The HD-RXU-4KZ-101-E is a DM Lite® 4K60 4:4:4 receiver designed to interoperate with a DM Lite HD-TXU-4KZ Seriestransmitter. The paired transmitter and receiver enable the extension of HDMI® and USB 2.0 signals. This is useful in applications where an AV source is located remotely from its destination, such as a display, projector, or codec solution. A CAT5e or higher twisted pair cable must be used to connect the HD-RXU-4KZ-101-E to the DM Lite transmitter.¹

Interoperability with a DM Lite HD-TXU-4KZ Series Transmitter

For interoperability between the HD-RXU-4KZ-101-E and an HD-TXU-4KZ Series transmitter, the DM Lite input port of the HD-RXU-4KZ-101-E must be connected to the DM Lite output port ...of the HD-TXU-4KZ Series transmitter

NOTE: USB 2.0 data extension is not supported if the HD-RXU-4KZ-101-E is paired with a DM Lite transmitter other than an HD-TXU-4KZ Series transmitter or paired with a DMPS Lite™ HD-PS Series switcher.

4K60 4:4:4 and HDR Support

The HD-RXU-4KZ-101-E supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.²

USB 2.0 Data Extension

Two USB 2.0 host ports are provided on the HD-RXU-4KZ-101-E, enabling connection to a wide variety of supported USB 2.0 peripheral devices.³

Ethernet Pass-Through Capability

The HD-RXU-4KZ-101-E is equipped with a 100/1000 Mbps LAN port that receives an Ethernet signal transmitted over the DM Lite connection from the transmitting endpoint. The LAN port of one endpoint can be connected to an Ethernet network, while the LAN port of the other endpoint can be connected directly to an Ethernet-enabled device such as a PC.

Compact, Surface-Mountable Design

Compact in design, the HD-RXU-4KZ-101-E can be mounted onto a flat surface such as a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD-RXU-4KZ-101-E can receive power from the included power pack or from the remote DM Lite transmitter.⁴

Key Features

• DM Lite® receiver functionality designed to interoperate with a DM Lite HD-TXU-4KZ Series transmitter
• Point-to-point extension of an HDMI® AV signal, USB 2.0 data signals, and Ethernet signal over a CAT5e or higher cable
• DM Lite transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• 4K60 4:4:4 capability
• HDR10, HDR10+, and Dolby Vision® video formats
• Ethernet pass-through capability
• Compliance with HDCP 2.3
• CEC (Consumer Electronics Control) pass-through capability
• EDID pass-through capability
• Compact, surface-mountable design
• Power from 24VDC power pack (included) or from remote DM Lite transmitter

Specifications
Manufacturer: Crestron Electronics, Inc
Manufacturer Part Number: 6511924
Manufacturer Website Address: http://www.crestron.com
Brand Name: Crestron
Product Line: DM Lite
Product Model: HD-RXU-4KZ-101-E
Product Name: DM Lite 4K60 4:4:4 Receiver for HDMI, USB 2.0, and Ethernet Signal Extension over CATx Cable
Product Type: Video Extender Receiver
Technical Information
Connectivity Technology: Wired
Maximum Operating Distance: 70.10 m
Video
Graphics Modes:

• 4K
• 4K UHD
• Full HD
• WQXGA
• UXGA
• WUXGA
• QWXGA

Supported Video Modes:

• 1080p
• 1080i

Maximum Video Resolution: 4096 x 2160
Interfaces/Ports
Network (RJ-45): Yes
HDMI Out: Yes
USB: Yes
Number of Network (RJ-45) Ports: 2
Number of USB Ports: 3
Number of HDMI Outputs: 1
Media & Performance
Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 5e
Physical Characteristics
Color Family: Black
Product Color: Black
Receiver Height: 30.48 mm
Receiver Width: 106.43 mm
Receiver Depth: 201.68 mm
Form Factor:

• Surface-mountable
• Rail-mountable

Receiver Weight (Approximate): 539.8 g
Miscellaneous
Package Contents:

• DM Lite 4K60 4:4:4 Receiver for HDMI, USB 2.0, and Ethernet Signal Extension over CATx Cable
• 1 x Power Pack
• 2 x Mounting Brackets

Application/Usage:

• Display
• Projector
• Desktop PC
• Mouse
• Keyboard

Warranty
Limited Warranty: 3 Year
