Crestron UC-AUDIO-1-B-DR2 KIT Conferencing Equipment Kit

Marketing Information

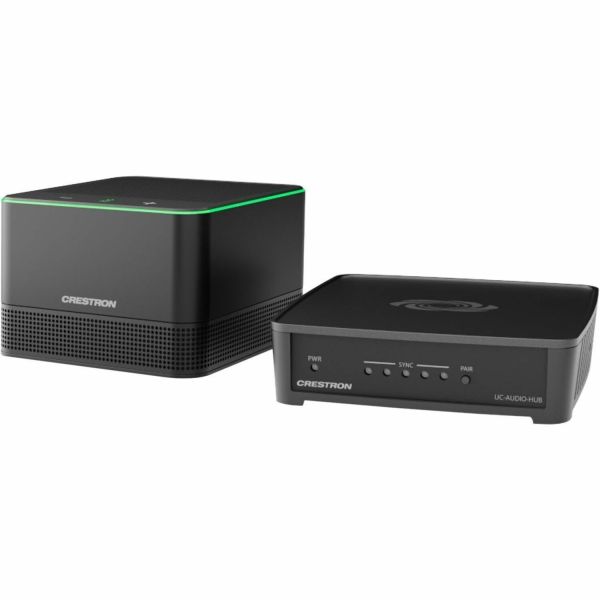

The Crestron Flex UC-AUDIO-1-B KIT is a wireless conferencing system that provides a small to large room audio conference solution. The kit includes a Crestron FlexUC-AUDIO-POD and UC-AUDIO-HUB. The system can be expanded to support up to four pods, delivering a high-quality audio experience when connected to the hub through the Digital Enhanced Cordless Telecommunications (DECT) technology.

High-Quality Audio

The pod delivers intelligible and high-quality audio across every corner of a room. It contains four auto-mixed directional mics that provide 360-degree pickup, high-quality echo cancellation, automatic gain compensation, and noise reduction.

Wireless Connectivity

The hub wirelessly connects with... and distributes audio to up to four paired pods, enabling the pods to be placed anywhere within a room. This allows the hub and the pods to be deployed in large conference rooms and multi-purpose meeting spaces. Audio level consistency is realized as volume levels are synchronized across all the pods.

Outstanding Adaptability

The pod is scalable across a variety of room types, including unconventionally shaped ones and those with challenging designs. In an open architecture design or where walls and ceilings cannot be opened to wires, the pod provides an audio solution ensuring that neither room aesthetics nor optimal audio are compromised. The pod, when connected with the hub, can easily be moved if furniture changes, and additional pods can be added if the room expands. Pods can be deployed in spaces with video conferencing hosted by personal devices to enable productive hybrid meetings with high-quality audio.

Robust Security

The pod delivers audio over long distances, making it optimal for larger spaces. The DECT technology ensures that only paired pods transmit audio from the intended hub. The pod provides safe and secure audio transmission leveraging DECT technology. DECT uses multiple levels of security and does not interfere with other wireless technologies, such as Wi-Fi and Bluetooth.

Easy Device Management

The configuration and connection status of the system can be monitored through a simple web user interface with no prior setup. Deploying the pods and the hub across multiple room types, firmware updates, monitoring, and management can be controlled using the XiO Cloud service.

Specifications
Manufacturer: Crestron Electronics, Inc
Manufacturer Part Number: 6513255
Manufacturer Website Address: http://www.crestron.com
Brand Name: Crestron
Product Model: UC-AUDIO-1-B-DR2 KIT
Product Name: UC-AUDIO-1-B-DR2 KIT Conferencing Equipment Kit
Product Type: Conferencing Equipment Kit
Technical Information
Connectivity Technology: Wireless
Recommended Usage:

• Conference
• Meeting Room

Network & Communication
Ethernet Technology: Gigabit Ethernet
Environmental Conditions
Minimum Operating Temperature: 5°C
Maximum Operating Temperature: 40°C
Maximum Relative Humidity (Non-condensing): 95%
Physical Characteristics
Color Details:

• Black

Material Details:

UC-AUDIO-POD:

• plastic housing, perforated stainless steel grilles, and die-cast aluminum bottom cover

UC-AUDIO-HUB:

• plastic housing

Dimensions:

UC-AUDIO-POD:

• Height: 3.0 in. (76 mm)
• Width: 4.40 in. (112 mm)
• Depth: 4.40 in. (112 mm)

UC-AUDIO-HUB:

• Height: 1.35 in. (34 mm), 1.77 in. (45 mm) with bracket
• Width: 5.04 in. (128 mm), 5.36 in. (137 mm) with bracket
• Depth: 5.04 in. (128 mm)

Weight (Approximate):

UC-AUDIO-POD:

• 1.6 lb (726 g)

UC-AUDIO-HUB:

• 8.9 oz (253 g) without bracket

Miscellaneous
Package Contents:

• FlexUC-Audio-Pod
• UC-AUDIO-Hub

Warranty
Limited Warranty: 3 Year
