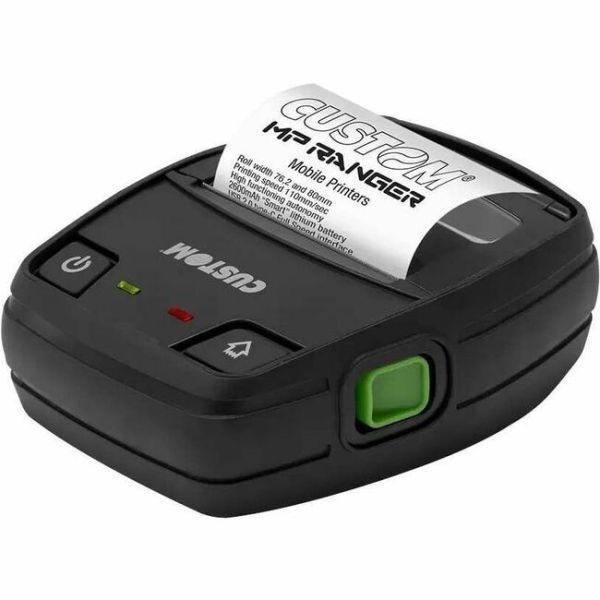

Custom MP RANGER Direct Thermal Printer

Marketing Information

MP Ranger is a latest generation mobile printer and represents the evolution of Custom's range of mobile printers. It can print on thermal paper in roll format, either on plain paper or peel-off format labels. Complete with sensors for displaying status and battery level, it allows the printing of 1D and 2D barcodes (QRCODE). It can handle rolls with paper width of 76.2 mm or 80 mm using the special reducer included in the package, and is designed to be used in outdoor working contexts, thanks to the IP54 protection to resist splashing of liquids and dust for use in adverse weather conditions and resistance to falls from 1 meter.

The operational equipment is completed by a clip for belt fastening and as an accessory the practical ca...se with shoulder strap is available for greater protection. The printer is equipped with different charging options, from simple connection via USB Type-C to positioning on single charging cradles. MP Ranger can be connected to any mobile device, from simple phones, to specialized terminals, to handheld mobile computers and tablets with Bluetooth and Wi-Fi functionality thanks to the Wireless technology.

Specifications
Manufacturer: Custom S.p.A
Manufacturer Part Number: 911MM010200P33
Manufacturer Website Address: http://www.custom.biz
Brand Name: Custom
Product Model: MP RANGER
Product Name: MP RANGER Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 110 mm/s
Maximum Print Resolution (dpi): 203
Barcode Symbology Supported:

• UPC-A
• UPC-E
• EAN-13
• EAN-8
• Code 128
• Code 32
• PDF417
• Codabar
• ITF
• Code 93
• 1D
• 2D
• Code 39
• GS1 DataBar Stacked
• GS1 DataBar Expanded Stacked Composite
• AZTEC
• Data Matrix
• PDF-417
• QR Code
• Micro QR Code

Application/Usage: Mobile
Features: Shoulder Strap
Mean Time Between Failures (MTBF): 4 Month
Ingress Protection (IP) Rating: IP54
Character Sets:

• PC437
• PC850
• PC860
• PC863
• PC865
• PC866

Print Head Life: 50 km
Print Technology: Direct Thermal
Memory
Standard Memory: 640 KB
Flash Memory: 2 MB
Interfaces/Ports
Serial Port: Yes
USB: Yes
USB Standard: USB Type C
Network & Communication
Bluetooth: Yes
Wireless LAN: Yes
Wireless LAN Standard: IEEE 802.11b/g/n
Media Types & Handling
Media Type:

• Receipt
• Ticket
• Continuous Paper

Media Sensor:

• Head Temperature Sensor
• Paper Presence Sensor
• Cover Open Sensor

Media Thickness: 100 µm
Maximum Roll Diameter: 40 mm
Maximum Label Width: 72 mm
Fonts & Emulation
Language Emulation: Custom/POS
Power Description
Power Source: Battery
Battery Information
Battery Chemistry: Lithium Ion (Li-Ion)
Battery Included: Yes
Battery Capacity: 2600 mAh
Environmental Conditions
Operating Temperature: 10°C - 50°C
Physical Characteristics
Height: 53 mm
Width: 122 mm
Depth: 149 mm
Weight (Approximate): 475 g
Miscellaneous
Package Contents:

• MP RANGER Direct Thermal Printer
• Case with shoulder strap
• Single charging cradle

Platform Supported: PC
