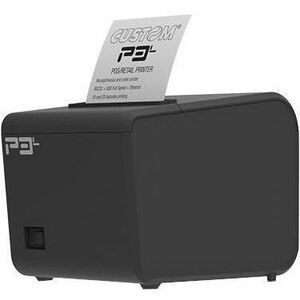

Custom P3L Direct Thermal Printer

Marketing Information

Cost-effective thermal receipt printer delivering performance, flexibility, and reliability

The affordable P3L thermal receipt printer is the perfect solution for businesses looking for reliable performance and flexibility. Designed to support existing and new applications with its triple interface design, the P3L supports USB, serial, and ethernet connectivity. Ideal for retail and hospitality, the P3L's 250mm/second print speed ensures quick transactions at the point-ofsale. Built for longevity, it is equipped with a long-life print head and autocutter and it's versatile thanks to the wall mounting. Engineered utilizing Custom's 30+ years of printing expertise, the P3L is the leader for cost-effective thermal POS printe...rs.

CHARACTERISTICS

• Triple Interface

The P3L comes standard with USB, Serial, and Ethernet interfaces for maximum connectivity

• 250mm/s Print Speed

With a print speed of 250mm/s, the P3L will save your business time at the checkout

• Cost Effective

The easy-to-use P3L is our most cost-effective POS receipt printer and includes both USB and Serial interface cables

• Durable

Leveraging Custom's 30+ years of printing expertise, the P3L features a long-life print head and autocutter

• Compatible with Android^TMand iOS^®

It supports printing both from Android^TMand iOS^®, ensuring the maximum compatibility with various operating systems

Specifications
Manufacturer: Custom S.p.A
Manufacturer Part Number: 911MX010300733
Manufacturer Website Address: http://www.custom.biz
Brand Name: Custom
Product Model: P3L
Product Name: P3L Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical Information
Recommended Use: Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 250 mm/s
Maximum Print Resolution (dpi): 203
Barcode Symbology Supported:

• UPC-A
• UPC-E
• EAN-8
• EAN-13
• Code 39
• ITF
• I25
• Codabar
• Code 128
• Code 11
• MSI
• PDF-417
• QR Code
• Data Matrix
• 1D
• 2D

Application/Usage:

• Retail
• Hospitality
• Business

Character Sets: Standard Font
Print Head Life: 150Km
Print Technology: Direct Thermal
Interfaces/Ports
Serial Port: Yes
USB Host: Yes
USB: Yes
Network & Communication
Ethernet: Yes
Ethernet Technology: Ethernet
Cutter
Cutter: Yes
Cutting Method: Automatic
Cut Type: Partial Cut
Cutter Life: 1500000 Cuts
Media Types & Handling
Media Type: Receipt
Media Sensor: Paper Low Sensor
Maximum Label Width: 80 mm
Fonts & Emulation
Language Emulation: Custom/POS
Power Description
Power Source: DC
Environmental Conditions
Operating Temperature: 0°C - 40°C
Physical Characteristics
Form Factor: Wall Mount
Height: 150 mm
Width: 195 mm
Depth: 145 mm
Weight (Approximate): 1 kg
Miscellaneous
Package Contents:

• P3L Direct Thermal Printer
• 58mm paper reduction guide

Platform Supported:

• Android
• iOS
