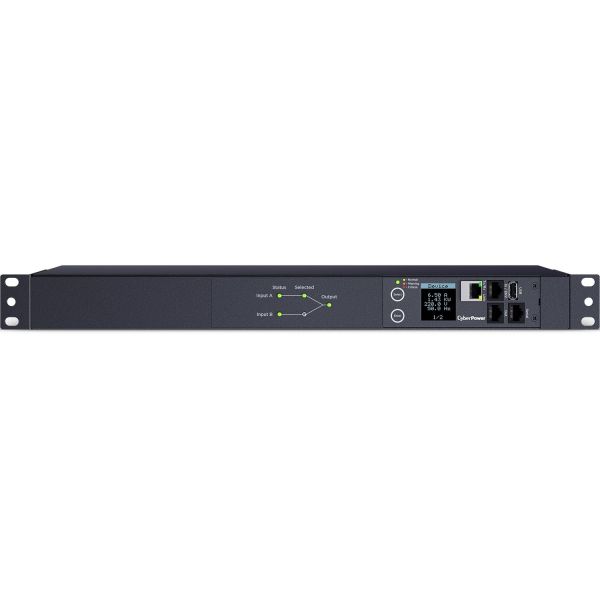

CyberPower Switched ATS PDU PDU44004 12-Outlets PDU

Marketing Information
Ensure continued operation of critical devices with the CyberPower PDU44004 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

The PDU44004 supports inputs between 200-240V and includes (12) IEC C13 outlets. Dual IEC C14 power cords are plugged into separate power sources (A and B), and information about each ...power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44004 is protected by a three-year limited warranty.

Specifications
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PDU44004
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: Switched ATS PDU
Product Model: PDU44004
Product Name: Switched ATS PDU PDU44004 12-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Switched
Design: Modular
Phase: Single Phase
Plug/Connector Type: IEC 60320 C14
Plug/Connector Detail: 2 x IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 12 x IEC 60320 C13
Power Description
Input Voltage Range: 200 V AC - 240 V AC
Output Voltage: 230 V AC
Output Voltage Range: 200 V AC - 240 V AC
Input Current: 15 A
Management
Management:

• IPv4
• TCP/IP
• UDP
• SNMPv1
• HTTP
• NTP
• DNS
• Telnet
• DHCP
• SMTP
• FTP
• IPv6
• SNMPv3
• HTTPs
• SSH
• SSL
• TLS
• LDAP(S)
• RADIUS
• Syslog
• CLI
• Windows AD

Remote Outlet Switching: Yes
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Color Family: Black
Product Color: Black
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Rack Height: 1U
Height: 44.5 mm
Width: 433.1 mm
Depth: 214.6 mm
Weight (Approximate): 4.54 kg
Miscellaneous
Additional Information:

• Input Frequency Range : 50 Hz - 60 Hz
• Nominal Input Voltage : 240 - 200 VAC
• Phase : Single Phase
• Nominal Output Voltage : 240 - 200 VAC
• Outlet Banks : 1
• Outlets - Total : 12
• Overload Protection : None
• Power Source Transfer Time : 2-7 ms
• Source Failure Detection Time : 2-3 ms
• Total Transfer Time : <10 ms
• Environmental Sensor : Optional, via RJ45
• Hardware Connection Port : Ethernet (RJ45)
• LCD : Multifunction LCD
• LED Indicators : Source Status
• Modular Expandability (Cascading) : Yes, via RJ45
• Outlet switching : Yes
• Upgradeable firmware : Yes
• Cord Retention Tray/Cord Organizers : Yes
• External Site Ground Pin : Yes
• Material of Construction : Metal
• Operating Elevation : 0 - 13123 ft (0 - 4000 m)
• Operating Relative Humidity : 0 - 95 % (non-condensing)
• Operating Temperature : 32 - 113 °F (0 - 45 °C)
• Storage Elevation : 0 - 49213 ft (0 - 14999 m)
• Storage Temperature : 5 - 131 °F (-15 - 55 °C)
• Safety : UL62368 : FCC Class A : cTUVus/CE/UKCA
