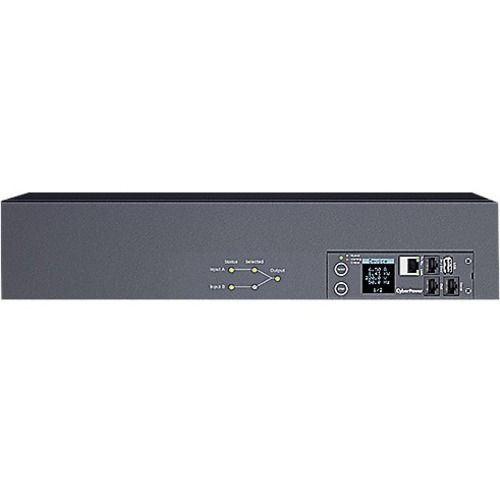

CyberPower ATS PDU44302 18-Outlets PDU

Marketing Information

rCyberPower PDU44302 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source within 10 ms (Source Failure Detection Time: 2-3 ms. Power Source Transfer Time: 2-7 ms) to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.

The product is built-in with hot-swappable Ethernet module, which can work... with PowerPanel Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD's colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.

Specifications
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: PDU44302
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: ATS
Product Model: PDU44302
Product Name: ATS PDU44302 18-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Metered Auto Transfer Switch
Phase: Single Phase
Plug/Connector Type: IEC 60309 32A
Plug/Connector Detail: 2 x IEC 60309 32A
Receptacle Type:

• IEC 60320 C13
• IEC 60320 C19

Receptacle Detail:

• 16 x IEC 60320 C13
• 2 x IEC 60320 C19

Protection Type:

• Overload Protection
• Circuit Breaker

Locking Receptacles:

• Cord Retention Tray
• IEC 60320 C13
• IEC 60320 C19

Power Description
Input Voltage: 230 V AC
Input Voltage Range: 200 V AC - 240 V AC
Input Current: 32 A
Management
Management:

• IPv4/v6
• SNMPv1/v3
• HTTP/HTTPs
• TCP/IP
• UDP
• DHCP
• NTP
• DNS
• SMTP
• SSH
• SSL
• TLS
• Telnet
• FTP
• Syslog
• RADIUS
• LDAP
• LDAPS
• Windows AD

Remote Outlet Switching: Yes
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Product Color: Black
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Form Factor: Hot-swappable
Rack Height: 2U
Height: 88 mm
Width: 433 mm
Depth: 215 mm
Weight (Approximate): 7.80 kg
