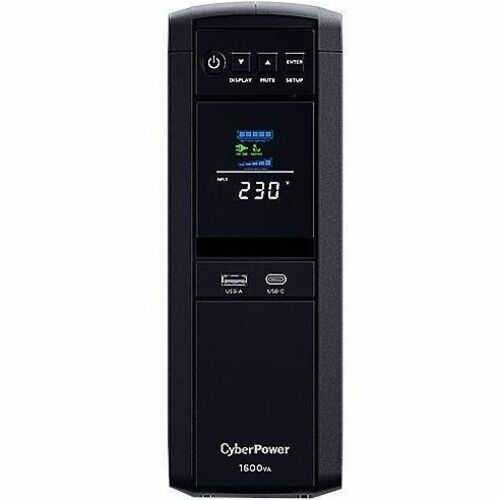

CyberPower PFC Sinewave CP1600EPFCLCD-UK 1600VA Tower UPS

Marketing Information

CyberPower CP1600EPFCLCD-UK with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS™ Technology to improve UPS operating efficiency and to minimize its energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems.

The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features data line protection with high-speed transmission to safeguard communication equipment against surges/spikes as well as supply 1Gbps speed to transmit data. With tiltable color LCD panel , users ...can monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and configuration.

FEATURES

• Line-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• LED Status Indicator
• PowerPanel Management Software
• USB Charging Port(s)
• Tower Form Factor
• Energy Saving Technology
• Pure Sine Wave Output
• Color LCD Panel
• SNMP/HTTP Remote Management Capability (Optional)
• Surge and Spike Protection
• High-speed Ethernet Data Transmission

Specifications
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: CP1600EPFCLCD-UK
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Line: PFC Sinewave
Product Model: CP1600EPFCLCD-UK
Product Name: PFC Sinewave CP1600EPFCLCD-UK 1600VA Tower UPS
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type:

• UK
• USB Type A
• USB Type C
• IEC 60320 C13

Receptacle Detail:

• 2 x UK
• 1 x USB Type A
• 1 x USB Type C
• 4 x IEC 60320 C13

Number of Battery & Surge Outlets: 6
Dataline Protection: RJ-45
Overload Protection: Yes
Cord Length: 1.83 m
Transfer Time: 8 ms
Energy Saving: GreenPower UPS Bypass Technology
Application/Usage:

• Computer System
• Server
• Network

Surge Suppression: Yes
Power Description
Load Capacity (VA): 1.60 kVA
Load Capacity (Watt): 1 kW
Input Voltage: 230 V AC
Input Voltage Range: 169 V AC - 271 V AC
Input Current: 10 A
Output Voltage: 230 V AC
Input Frequency:

• 50 Hz
• 60 Hz

Output Frequency:

• 50 Hz
• 60 Hz

Waveform Type: Pure Sine Wave
Surge Energy Rating: 405 J
Display & Graphics
Display: LCD
Management
Network Management:

• Dry Contact
• SNMP/HTTP Remote Monitoring

Alarm:

• Battery Mode
• Low Battery
• Overload
• UPS Fault

Controls/Indicators
Status Indicators:

LED Indicators:

• Power On

LCD Information Display:

• Operation Type
• Power Status
• Battery Status
• Load Status
• Fault & Warning
• Event & Log

Interfaces/Ports
Serial Port: Yes
Network (RJ-45): Yes
USB: Yes
USB (HID Compliant) Port: Yes
Number of USB Ports: 2
Battery Information
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2.60 Minute
Backup/Run Time (Half Load): 9.70 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: Yes
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Storage Temperature: -15°C - 45°C
Maximum Operating Elevation: 3 km
Maximum Storage Elevation: 15 km
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Thermal Dissipation: 24 BTU/h
Physical Characteristics
Height: 280 mm
Width: 100 mm
Depth: 355 mm
Form Factor: Tower
Weight (Approximate): 11 kg
Miscellaneous
Package Contents:

• PFC Sinewave CP1600EPFCLCD-UK 1600VA Tower UPS
• USB Cable

Certifications & Standards:

CE

Software Included: PowerPanel Power Management Software
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information:

2 Year Battery Warranty

Directly Connected Equipment Guarantee: €50000 - 2 Year
