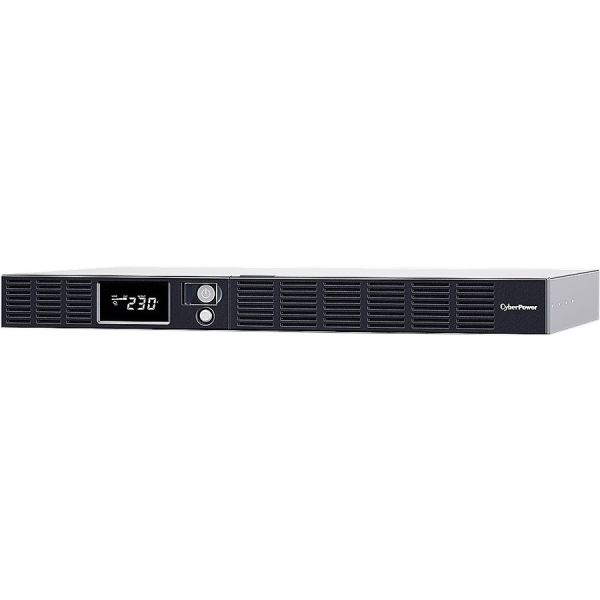

CyberPower Smart App OR1500ERM1U 1500VA Rack-mountable UPS

Marketing Information

CyberPower OR1500ERM1U Line-Interactive UPS offers Simulated Sine Wave output power for office system devices including PCs, workstations, networking devices, and peripherals. It's typically integrated in the back office, server room, and data center environment to ensure a reliable backup power supply during power failures. In addition, the rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.

The UPS has a multifunction LCD display which offers real-time information, including input and output voltage levels, load and battery levels, battery runtime, overload warning, and a silent mode. With the network ports on the UPS, it prevents network devices from be...ing subjected to sudden power surges caused by lightning, thereby avoiding potential system damage. As for battery maintenance, the UPS allows battery hot-swapping, which enables users to perform normal battery maintenance without significant interruption.

Specifications
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: OR1500ERM1U
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Line: Smart App
Product Model: OR1500ERM1U
Product Name: Smart App OR1500ERM1U 1500VA Rack-mountable UPS
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 2
Dataline Protection:

• RJ-11
• RJ-45

Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: GreenPower UPS Bypass Technology
Application/Usage:

• Office
• Server Room
• Supermarket
• Factory
• Airport
• Train Station
• POS Terminal
• Security System
• Surveillance System
• Telecommunication
• Network Device
• Network Storage Device
• Multimedia Device
• Computer
• Workstation
• Data Center
• SOHO Office

Power Description
Load Capacity (VA): 1.50 kVA
Load Capacity (Watt): 900 W
Input Voltage: 230 V AC
Input Voltage Range: 165 V AC - 271 V AC
Output Voltage: 230 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 810 J
Management
Network Management: SNMP/HTTP Remote Monitoring
Alarm:

• Battery Mode
• Low Battery
• Overload
• UPS Fault

Controls/Indicators
Status Indicators:

LCD Information Display:

• Operation Type
• Power Status
• Battery Status
• Load Status
• Other Information

LED Indicators:

• Power On

Interfaces/Ports
Serial Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Number of Batteries: 1
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2.50 Minute
Backup/Run Time (Half Load): 11 Minute
Typical Battery Recharge Time: 8 Hour
Hot Swappable: Yes
Replaceable Battery: Yes
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -15°C - 45°C
Maximum Operating Elevation: 3.05 km
Maximum Storage Elevation: 15.24 km
Storage Relative Humidity: 0% - 95%
Thermal Dissipation: 24 BTU/h
Physical Characteristics
Height: 43.2 mm
Width: 431.8 mm
Depth: 388.6 mm
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 14.88 kg
Miscellaneous
Package Contents:

• Smart App OR1500ERM1U 1500VA Rack-mountable UPS
• Rackmount Ears
• Power Cord
• USB Cable
• User's Manual
