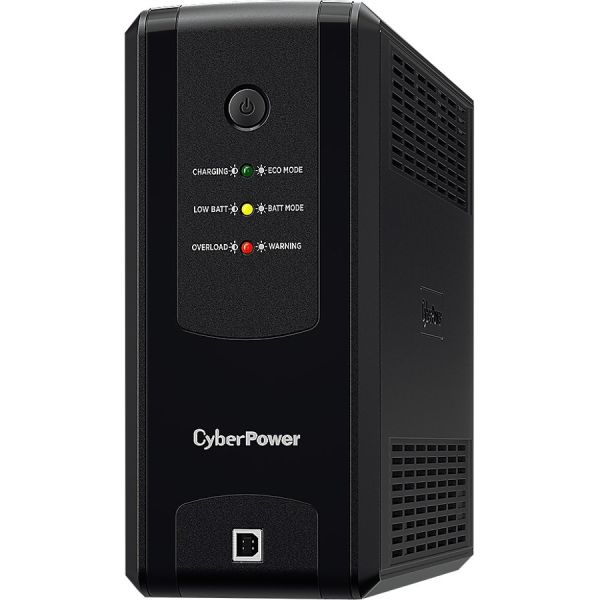

CyberPower UT1050EIG 1.05kVA Deskside/Tower UPS

Marketing Information

CyberPower UT1050EIG guarantees power protection for computers, networking equipment, and storage devices. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS™ Bypass design achieves ultra-low power consumption to reduce energy costs, and allows a lower operation temperature which extends battery lifespan.

The LED indicator shows the utility, battery and operating status of the UPS. It is also compatible with generators to extend power continuity. Other features include overload protection, EMI filter and configurable alarm to safeguard your devices. Its tower design allows users to place it easily on desks or... other tight spaces.

Specifications
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: UT1050EIG
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Series: UT
Product Model: UT1050EIG
Product Name: UT1050EIG 1.05kVA Deskside/Tower UPS
Packaged Quantity: 1 / Pack
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: UK
Receptacle Type: IEC 60320 C13
Receptacle Detail: 6 x IEC 60320 C13
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 2
Dataline Protection:

• RJ-11
• RJ-45

Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Application/Usage:

• Computer
• Network Device
• Storage Device
• Home
• Office
• SOHO Office

Power Description
Load Capacity (VA): 1.05 kVA
Load Capacity (Watt): 630 W
Input Voltage: 230 V AC
Input Voltage Range: 165 V AC - 290 V AC
Output Voltage: 230 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 150 J
Management
Alarm:

• Battery Mode
• Low Battery
• Overload
• UPS Fault

Controls/Indicators
Status Indicators:

LED Indicators:

• Power On
• Line Mode
• Battery Mode
• Bypass Mode
• Low Battery
• Overload
• UPS Fault

Interfaces/Ports
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes
Battery Information
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Typical Battery Recharge Time: 6 Hour
Replaceable Battery: No
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -20°C - 50°C
Maximum Operating Elevation: 3.05 km
Maximum Storage Elevation: 3.05 km
Storage Relative Humidity: 0% - 90%
Thermal Dissipation: 27 BTU/h
Physical Characteristics
Height: 220 mm
Width: 95 mm
Depth: 306.8 mm
Form Factor: Deskside/Tower
Weight (Approximate): 6.90 kg
Miscellaneous
Package Contents:

• UT1050EIG 1.05kVA Deskside/Tower UPS
• 1 x Power Cord
• Product Registration Card
• Quick Start Guide
