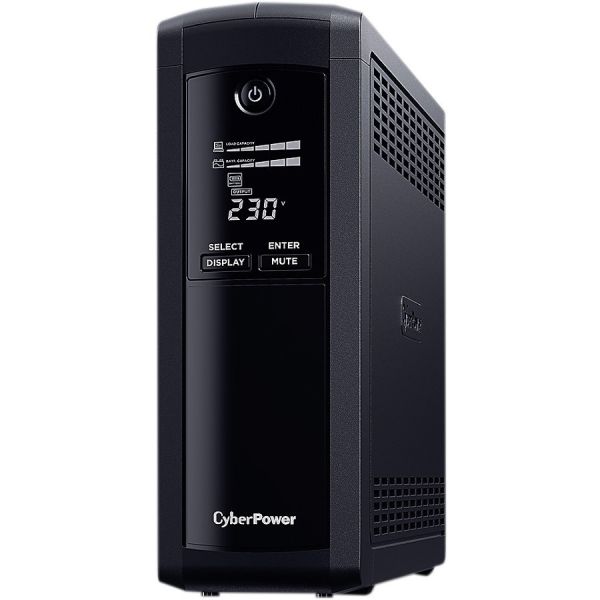

CyberPower Value Pro VP1600EILCD 1600VA Tower UPS

Marketing Information

CyberPower VP1600EILCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment.

The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as... supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel® Power Management Software to achieve real-time monitoring and configuration.

Specifications
Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: VP1600EILCD
Manufacturer Website Address: https://www.cyberpowersystems.com/
Brand Name: CyberPower
Product Line: Value Pro
Product Model: VP1600EILCD
Product Name: Value Pro VP1600EILCD 1600VA Tower UPS
Product Type: Line-interactive UPS
Technical Information
AVR: Yes
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 8 x IEC 60320 C13
Number of Battery & Surge Outlets: 4
Number of Surge-only Outlets: 4
Dataline Protection:

• RJ-11
• RJ-45

Overload Protection: Yes
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: GreenPower UPS Bypass Technology
Application/Usage:

• Home
• SOHO Office
• POS Terminal
• Network Storage Device
• Telecommunication
• Workstation
• Computer
• Home Theatre
• Security System
• Surveillance System
• Multimedia Device
• Electronic Device
• Network Device

Power Description
Load Capacity (VA): 1.60 kVA
Load Capacity (Watt): 960 W
Input Voltage: 230 V AC
Input Voltage Range: 167 V AC - 295 V AC
Output Voltage: 230 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Simulated Sine Wave
Surge Energy Rating: 450 J
Management
Alarm:

• Battery Mode
• Low Battery
• Overload
• UPS Fault

Controls/Indicators
Status Indicators:

LCD Panel:

• Yes

LCD Information Display:

• Operation Type
• Power Status
• Battery Status
• Load Status
• Fault & Warning
• Other Information

LED Indicators:

• Power On

Interfaces/Ports
Serial Port: Yes
USB (HID Compliant) Port: Yes
Battery Information
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 2 Minute
Backup/Run Time (Half Load): 11 Minute
Typical Battery Recharge Time: 8 Hour
Replaceable Battery: No
Environmental Conditions
Maximum Operating Temperature: 40°C
Storage Temperature: -20°C - 50°C
Maximum Operating Elevation: 3.05 km
Maximum Storage Elevation: 3.05 km
Storage Relative Humidity: 0% - 90%
Sound Emission (A-Weighted): 50 dB(A)
Thermal Dissipation: 68 BTU/h
Physical Characteristics
Height: 279.4 mm
Width: 99.1 mm
Depth: 355.6 mm
Form Factor: Tower
Weight (Approximate): 10.42 kg
Miscellaneous
Package Contents:

• Value Pro VP1600EILCD 1600VA Tower UPS
• USB Cable
• User's Manual
• Product Registration Card
