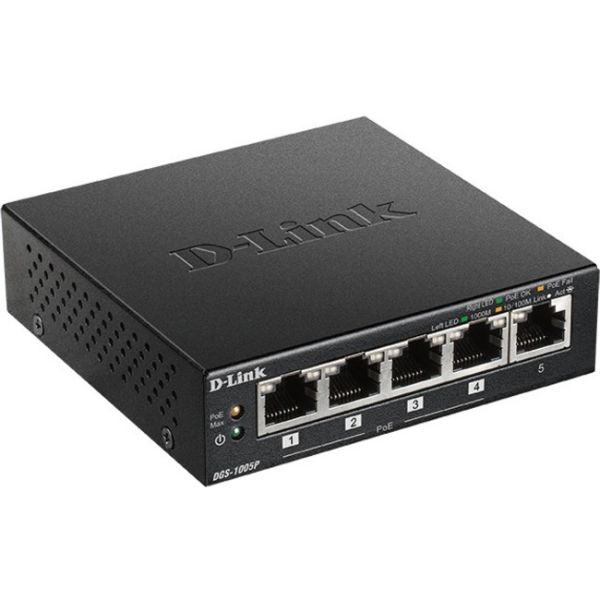

D-Link 5-Port Desktop Gigabit PoE+ Switch

Marketing Information
The D-Link DGS-1005P 5-Port Desktop Gigabit PoE+ Switch enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), network video cameras and IP phones to the network. Built with home and small business users in mind, the DGS-1005P is compact and operates silently, making it ideal for most rooms and offices.

Power over Ethernet

The DGS-1005P features four Gigabit Ethernet ports that support the IEEE 802.3af and IEEE 802.3at PoE, supplying up to 30 W on each PoE port and providing a total power budget of 60 W. You can connect compatible devices to the DGS-1005P without using an additional power supply. This allows you to save on cabling and to install devices in locations without ...immediate access to power outlets.

High Performance

The DGS-1005P features plug-and-play installation and requires no configuration. Automatic MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1005P maximises network performance while minimising the transmission of bad network packets.

Green Technology

The DGS-1005P features green technology such as IEEE 802.3az EnergyEfficient Ethernet (EEE), link status detection, and cable length detection. EEE adjusts the power consumption of the switch based on network utilisation, reducing the cost of ownership during periods of inactivity. Link status detection powers down ports when no links are detected, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch.

Compact and Silent

The compact design of the DGS-1005P allows placement in most locations, including those where space is at a premium. The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noisesensitive areas such as workstations and meeting rooms.
Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DGS-1005P/B
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Model: DGS-1005P
Product Name: 5-Port Desktop Gigabit PoE+ Switch
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 5
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 4 x Gigabit Ethernet PoE+
• 1 x Gigabit Ethernet Network

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3af
• IEEE 802.3at
• IEEE 802.3x
• IEEE 802.3az
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.1p

Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 60 W
Input Voltage: 53.5 V DC
Power Source: Power Adapter
Power Consumption: 3.08 W
Physical Characteristics
Height: 28 mm
Width: 100 mm
Depth: 98 mm
Weight (Approximate): 260 g
Miscellaneous
Country of Origin: China
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
