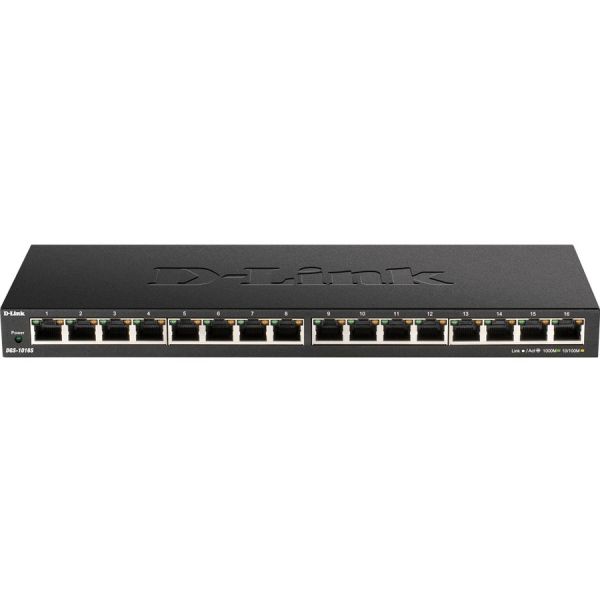

D-Link 16-Port Gigabit Unmanaged Switch

Marketing Information

• 16 x Gigabit ports
• Slim, low profile design for desktop or wall mount
• Plug & Play simplicity for easy installation
• Silent operation with fanless design
• 2-year D-Link warranty

Slim, Low-Profile Design

Allowing the switch to be placed on the desktop or mounted on the wall

High-Speed Gigabit Networking

Connect up to 16 devices for fast file transfers and smooth media streaming

Silent Operation

Fanless design means the switch is virtually silent when in use

Energy Efficient

Integrated energy-saving technology to reduce power usage automatically


Connect More, Connect Faster

The 1...6-Port Gigabit Unmanaged Switch is ideal for homes and small-to-medium-sized businesses looking for a quick and easy way to upgrade or expand their network. Its slim, low-profile design means it can be placed on the desktop or mounted on the wall. Simple to set up with no software or configuration needed.

All speed and no fuss

Gigabit connectivity with support for 802.1p Quality of Service means faster uploads and downloads without video streaming or voice calls being interrupted.

Silent and built to last

Metal casing with a fanless design not only means silent operation but also reduces energy usage and enhances reliability.

Visual Cable Diagnostics
LEDs on each port allow you to quickly see when something is wrong with the connection.

Good for your wallet, great for the planet

With its integrated power-saving technologies, the switch automatically reduces power consumption when a low-traffic or idle port is detected. It can also detect when a shorter network cable is connected to use less power on that port.

Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DGS-1016S/B
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Model: DGS-1016S
Product Name: 16-Port Gigabit Unmanaged Switch
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 16
Network (RJ-45): Yes
Port/Expansion Slot Details: 16 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3az
• IEEE 802.3x
• IEEE 802.1p

Management & Protocols
Manageable: No
Power Description
Power Source: Power Adapter
Physical Characteristics
Product Material: Metal
Form Factor:

• Desktop
• Rack-mountable

Height: 280 mm
Width: 110 mm
Depth: 25 mm
Weight (Approximate): 770 g
