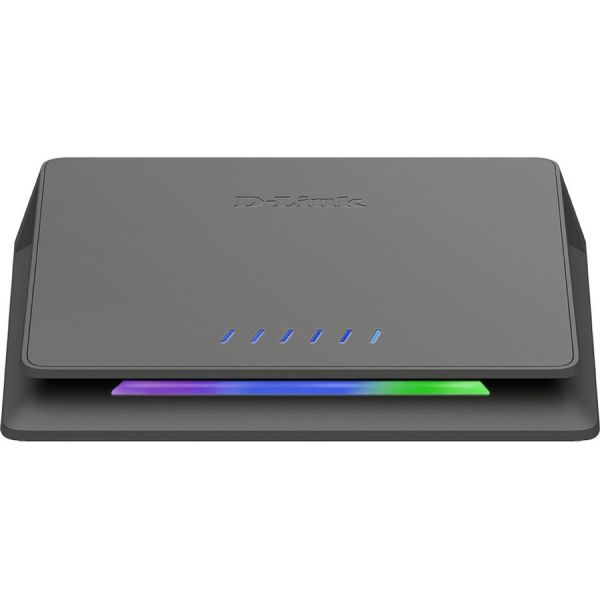

D-Link 6-Port Multi-Gigabit Unmanaged Switch

Marketing Information
Turbo Mode

Activate Turbo Mode whenever you're ready for optimized performance

Plug and Play

Ready to perform right out of the box with no configuration required

Multicolored LED

Multi-Colored LED light conveniently indicates Turbo Mode status

Silent Operation

Fanless design enhances reliability and is suitable for noise-free working environments

Metal Casing

Rugged aluminum alloy matte gray casing

Multi-Gigabit

Multi-Gigabit ports for high data rate transmission

Power Efficiency

Designed for low power consumption (10.6 W)

QoS Management...>

Quality of Service for uninterrupted connections
Specifications
Manufacturer: D-Link Systems, Inc
Manufacturer Part Number: DMS-106XT
Manufacturer Website Address: http://www.dlink.co.uk
Brand Name: D-Link
Product Model: DMS-106XT
Product Name: 6-Port Multi-Gigabit Unmanaged Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 6
Uplink Port: Yes
Network (RJ-45): Yes
Port/Expansion Slot Details:

• 5 x 2.5 Gigabit Ethernet Network
• 1 x 10 Gigabit Ethernet Network

Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology:

• Gigabit Ethernet
• 10 Gigabit Ethernet

Network Technology:

• 2.5GBase-T
• 10GBase-T

Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x
• IEEE 802.1p
• IEEE 802.3az
• IEEE 802.3bz
• IEEE 802.3an

Management & Protocols
Manageable: No
Power Description
Power Consumption: 10.60 W
Physical Characteristics
Product Material:

• Metal
• Aluminium Alloy

Form Factor: Desktop
Height: 33 mm
Width: 163 mm
Length: 217 mm
Weight (Approximate): 680 g
